MSA General Monitors S4100C - Tables

Model S4100C
17
4.2 Tables

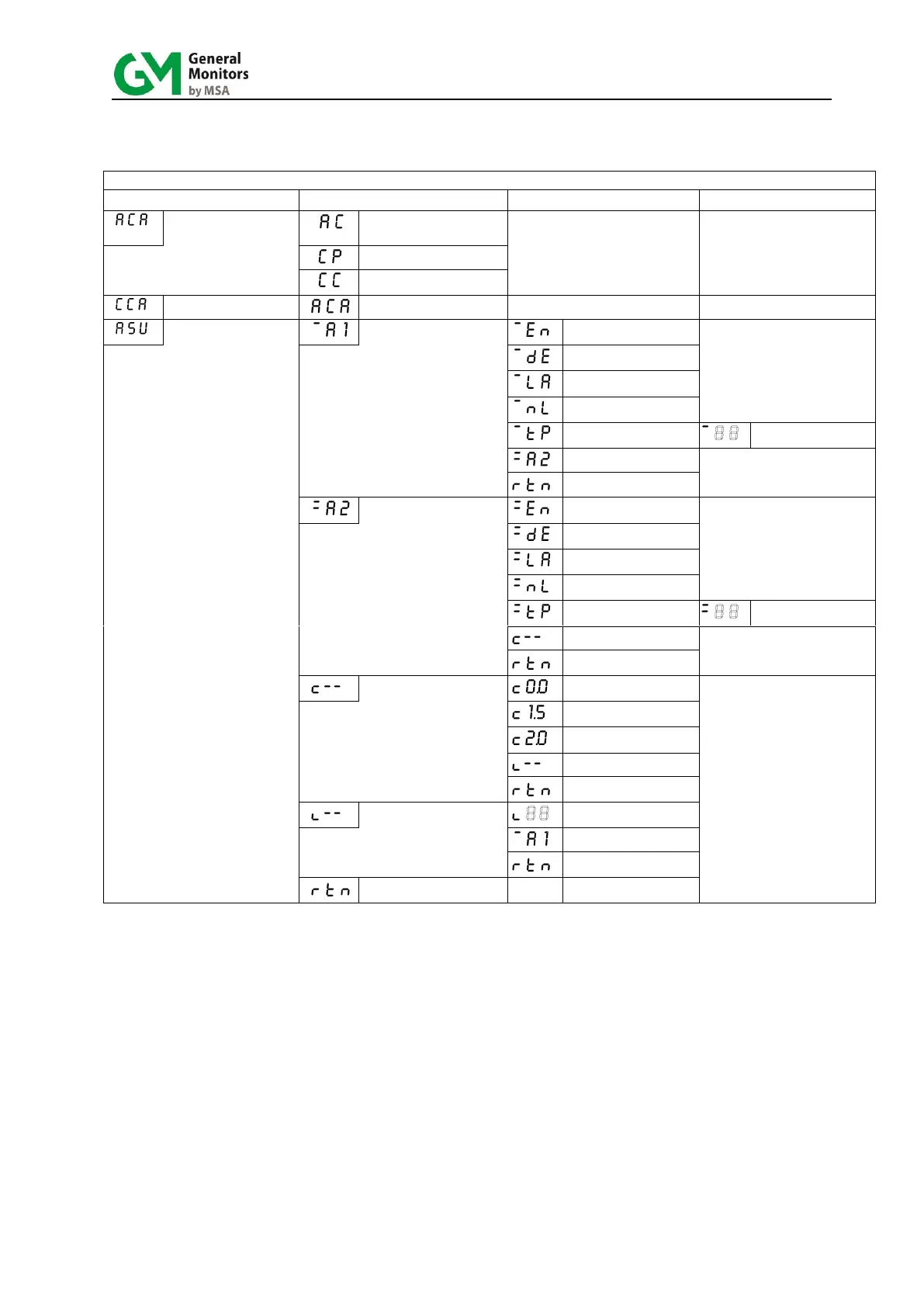

TABLE 1 – MENU DISPLAY CODES
Level 1
Level 2
Level 3
Level 4
Activate calibration
mode
Activate calibration,
Apply calibration gas
Calibration in progress
Calibration completed,
Remove calibration gas
Check calibration mode
Activate calibration mode
Activate setup mode
A1 alarm setup
Open collector output
normally energized
Open collector output
normally de-energized
Open collector output
latching
Open collector output
non-latching
Triplevel setup
Triplevel adjustable
10% LEL to 60% LEL
A2 alarm setup
Return to level 2
A2 alarm setup
Open collector output
normally energized
Open collector output
normally de-energized
Open collector output
latching
Open collector output
non-latching
Triplevel setup
Triplevel adjustable
10% LEL to 60% LEL
Analogue output setup
Return to level 2
Analogue output setup
Analogue output 0mA
during calibration
Analogue output 1.5mA
during calibration
Analogue output 2.0mA
during calibration
Calibration level setup
Return to level 2
Calibration level setup
Cal. Level adjustable
25% LEL to 90% LEL
A1 alarm setup
Return to level 2
Return to level 1
