3.4.7 Adjustable Pipe Mount
A Universal Pipe Mount Kit (P/N 10176946) can be used to mount the S5000 on pipes ranging from 20-150mm in diameter.
Two brackets are mounted over the top of the integrated mounting tabs and fitted with an adjustable pipe band (not included).

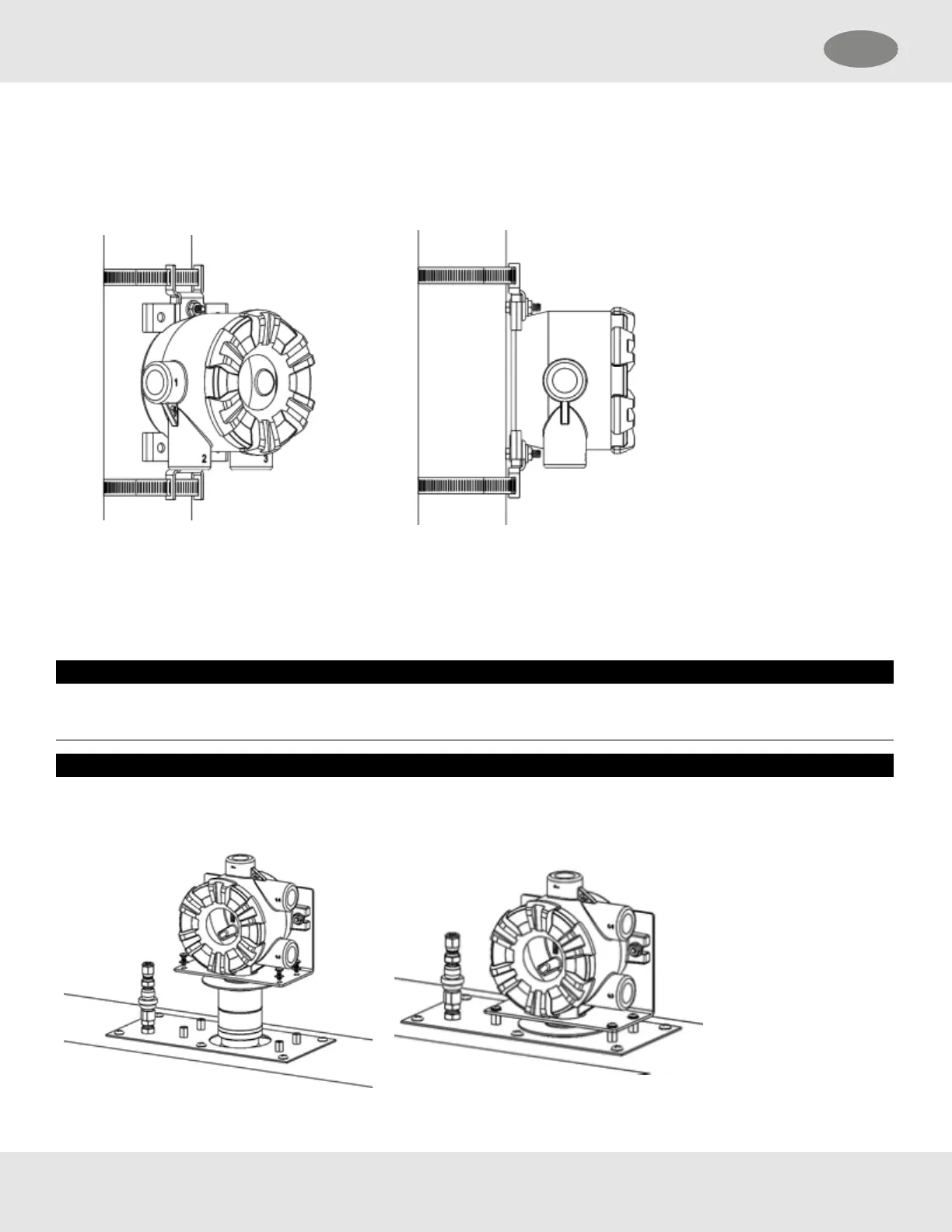

Figure 16 Adjustable Pipe Mount
3.4.8 Duct Mount
Duct mount kits are available for monitoring atmosphere inside flat or round ducts. Round duct mount kits are available for
small ducts 12-20" in diameter (P/N10179323) and large ducts 20-40" in diameter (P/N 10179324). The flat duct mount
(P/N10179322) is universal for flat ducts.
NOTICE
Consider the sensor type before choosing a duct mount location. IRSensors should be mounted horizontally and all other
sensors should be mounted vertically.
NOTICE
Air flow in the duct must be zero to ensure proper calibration.
Figure 17 Flat Duct Mount
