operating manual(s).

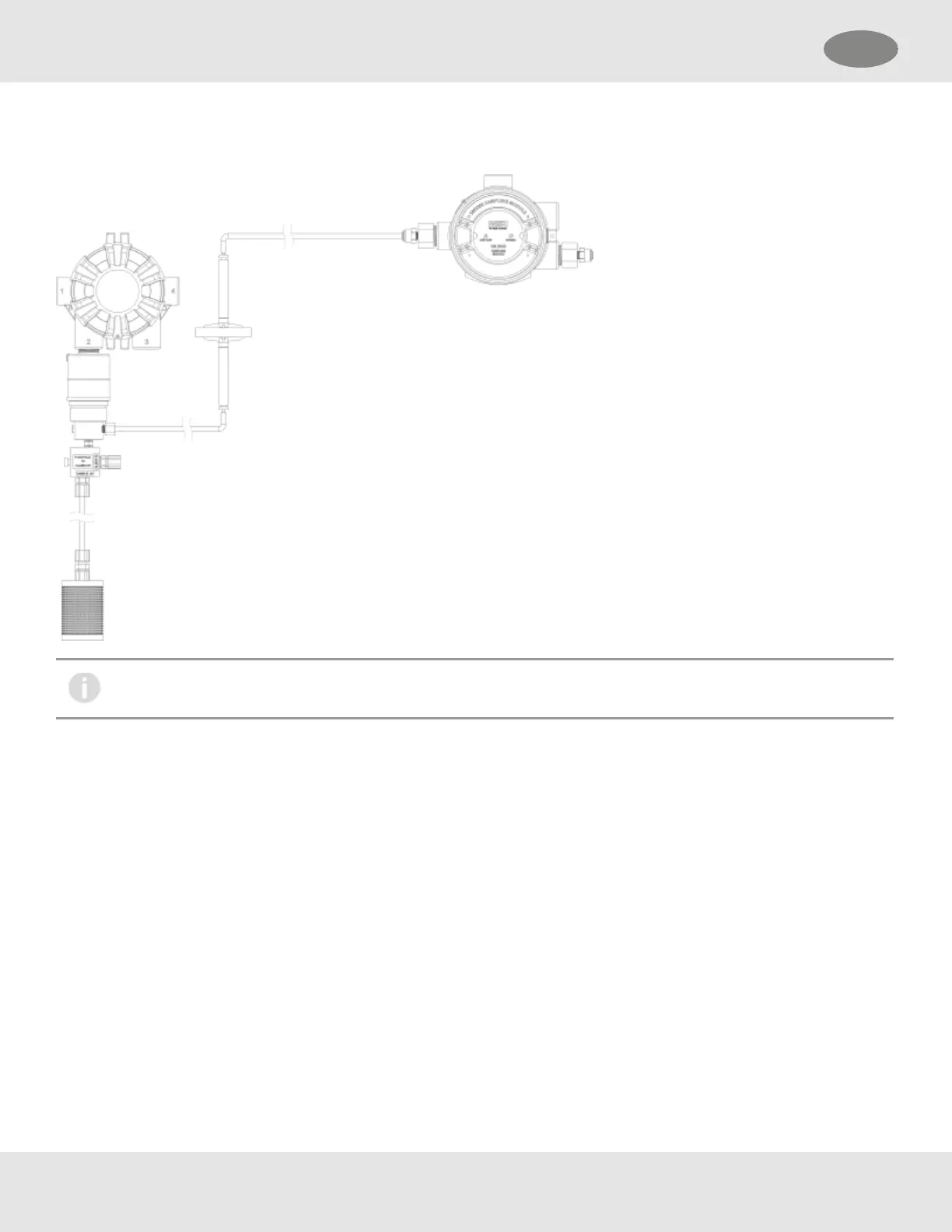

Figure 21 Mounting the SM5000 with a Digital Sensor
• SM5000 is not for sale in EU.
• Diffusion Supervision must be disabled when using the SM5000.
3.5 Installing a Remote Sensor Junction Box
Sensors mounted remotely must use the S5000 junctionbox. The junction box housing is the same construction as the
transmitter. The mounting options and instructions for connecting the sensor are the same for sensors connected directly to
the S5000 transmitter housing. The junction box is available in 316StainlessSteel.
Sensors can be remote mounted up to 100m from the transmitter housing, as long as the S5000 transmitter is mounted within
maximum distance from the power supply, as indicated in Table 1 Maximum Mounting Distance for Local Sensors, Imperial
Units.
The junction box does not have an illuminated display and has two connectors for attaching a single sensor input and an output
connects to the transmitter. A 16AWG 4element cable with a braided shield should be used for the electrical connection
between the junction box and the S5000 transmitter. Specific cable recommendations are available upon request.
22
3 Installation US
