MSD 6A 6201 User Manual

10 INSTALLATION INSTRUCTIONS
MSD • WWW.MSDPERFORMANCE.COM • (915) 857-5200 • FAX (915) 857-3344
ORANGE
BLACK
MAGNETIC PICKUP
(NOT USED)
GRAY
TACH OUTPUT
RED
WHITE
FROM POINTS OR ELECTRONIC
IGNITION AMPLIFIER
(ORIGINAL COIL WIRE)
FROM IGNITION KEY
(ORIGINAL COIL WIRE)
GREEN (-)
VIOLET (+)
DIGITAL 6AL
REV
LIMITER

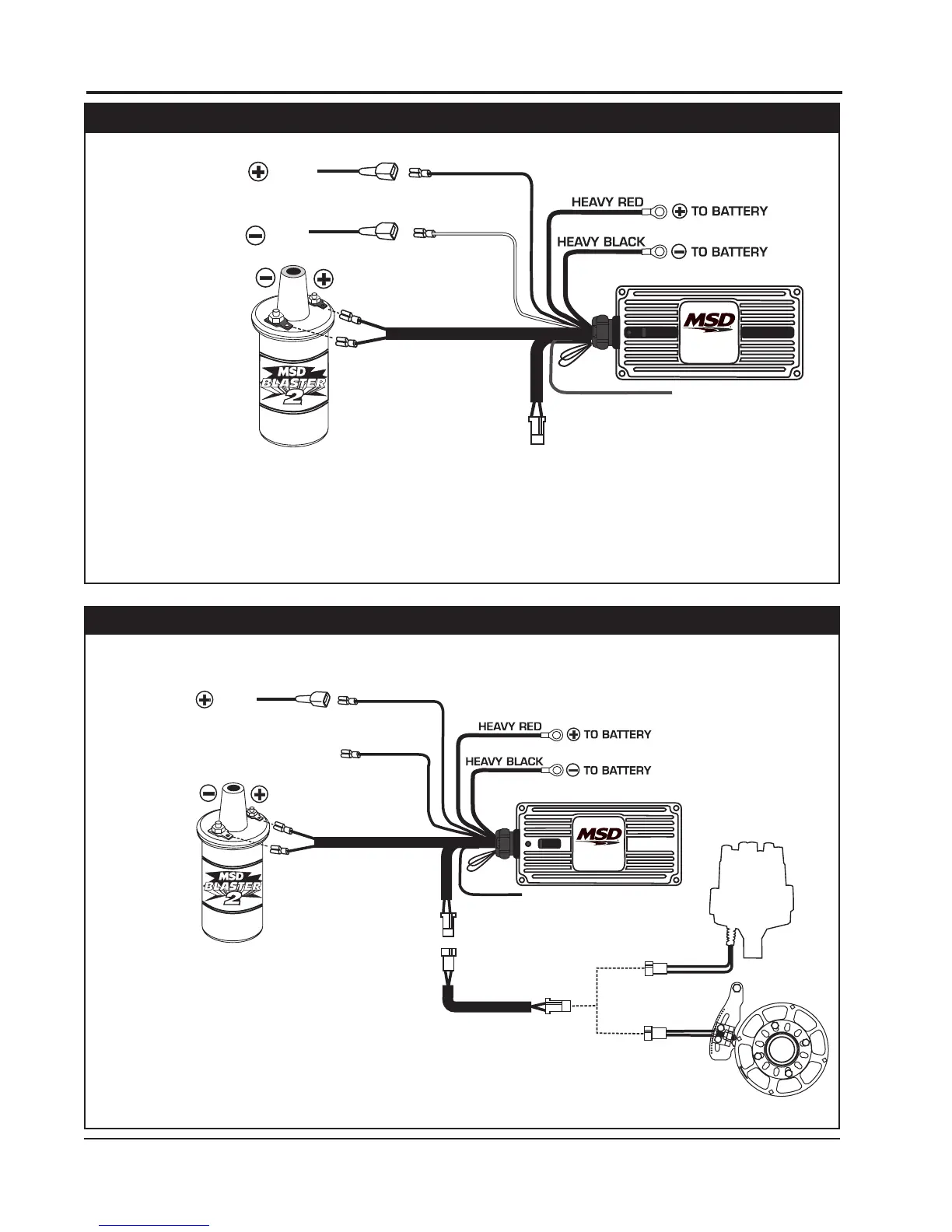

MSD SYSTEMS Installing to Points/Amplier Style Ignition.
NOTE: On dual point setups, it is recommended
to remove the trailing set of points.
MSD SYSTEMS Installing to an MSD Distributor/Crank Trigger.
NOTE: Ballast Resistor is not necessary.
NOTE: Remove the coil terminal wires. The negative wire
connects to MSD White. The positive wire connects
to MSD Red. The MSD Orange connects to the
coil positive terminal, Black connects to the coil
negative terminal.
OR
GREEN
GREEN
PN 8860
HARNESS
VIOLET
VIOLET
DISTRIBUTOR
WITH
MAGNETIC PICKUP
MSD CRANK
TRIGGER WHEEL
DISTRIBUTOR
ORANGE
BLACK
GRAY
TACH OUTPUT
RED
WHITE
FROM IGNITION KEY
(ORIGINAL COIL WIRE)
MAGNETIC
PICKUP
DIGITAL 6AL
REV
LIMITER
(NOT USED)
