12
INSTALLATION INSTRUCTIONS
MSD • WWW.MSDPERFORMANCE.COM • (915) 857-5200 • FAX (915) 857-3344
COIL
WIRE
A
(PINK)
WIRE
A
(PINK)
WIRES
B AND C
WIRES
B AND C
FACTORY HARNESS
(CUT FROM COIL)
BLACK (COIL -)
ORANGE (COIL +)
MAGNETIC PICKUP
(NOT USED)
GRAY
TACH OUTPUT
GREEN (-)
VIOLET (+)
RED
WHITE
INDICATES CONNECTION
•
DIGITAL 6AL
REV
LIMITER

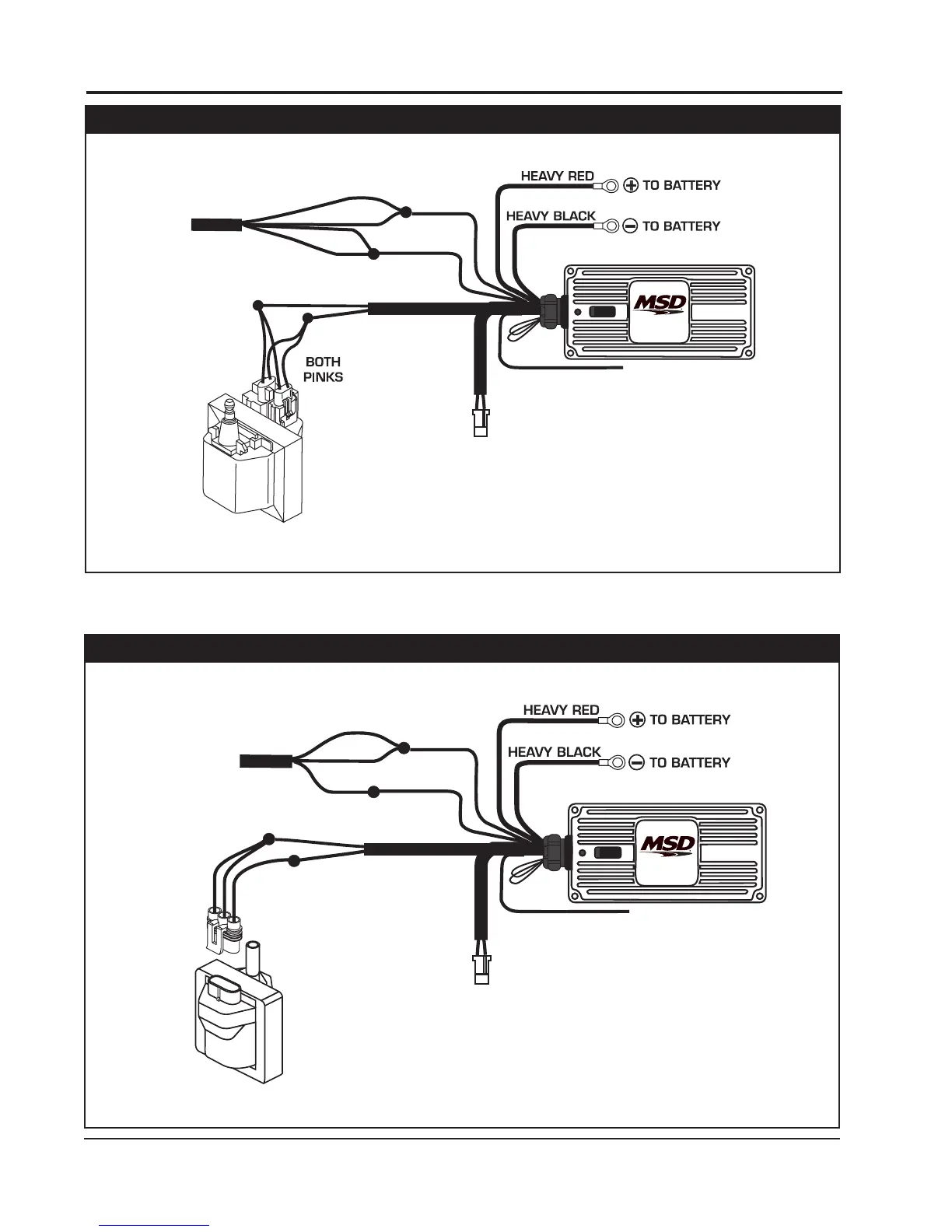

GM IGNITIONS Wiring the 1996 and up single connector coil without harness.
NOTE: MSD offers a direct plug in harness,
PN 8877, that makes this a splice
free installation.
NOTE: The coil connector is labeled A-B-C.
The wire in the A port is positive
(pink). The wires in B and C are
coil negative wires, color will vary
by application.
BOTH
PINKS
BOTH
WHITES
BOTH
WHITES
FACTORY HARNESS
(CUT FROM COIL)
BLACK (COIL -)
ORANGE (COIL +)
MAGNETIC PICKUP
(NOT USED)
GRAY
TACH OUTPUT
GREEN (-)
VIOLET (+)
RED
WHITE
INDICATES CONNECTION
•
DIGITAL 6AL
REV
LIMITER
GM IGNITIONS Wiring a Dual Connector Coil.
NOTE: Cut and splice the two pink wires
(coil positive) together and connect
to orange wire of MSD. Cut and
splice the two white wires (coil
negative) together and connect to
the white of MSD. If the vehicle is
not equipped with a factory tach,
there will only be one white wire.
NOTE: MSD offers a direct plug in harness, PN 8876, for this coil.
