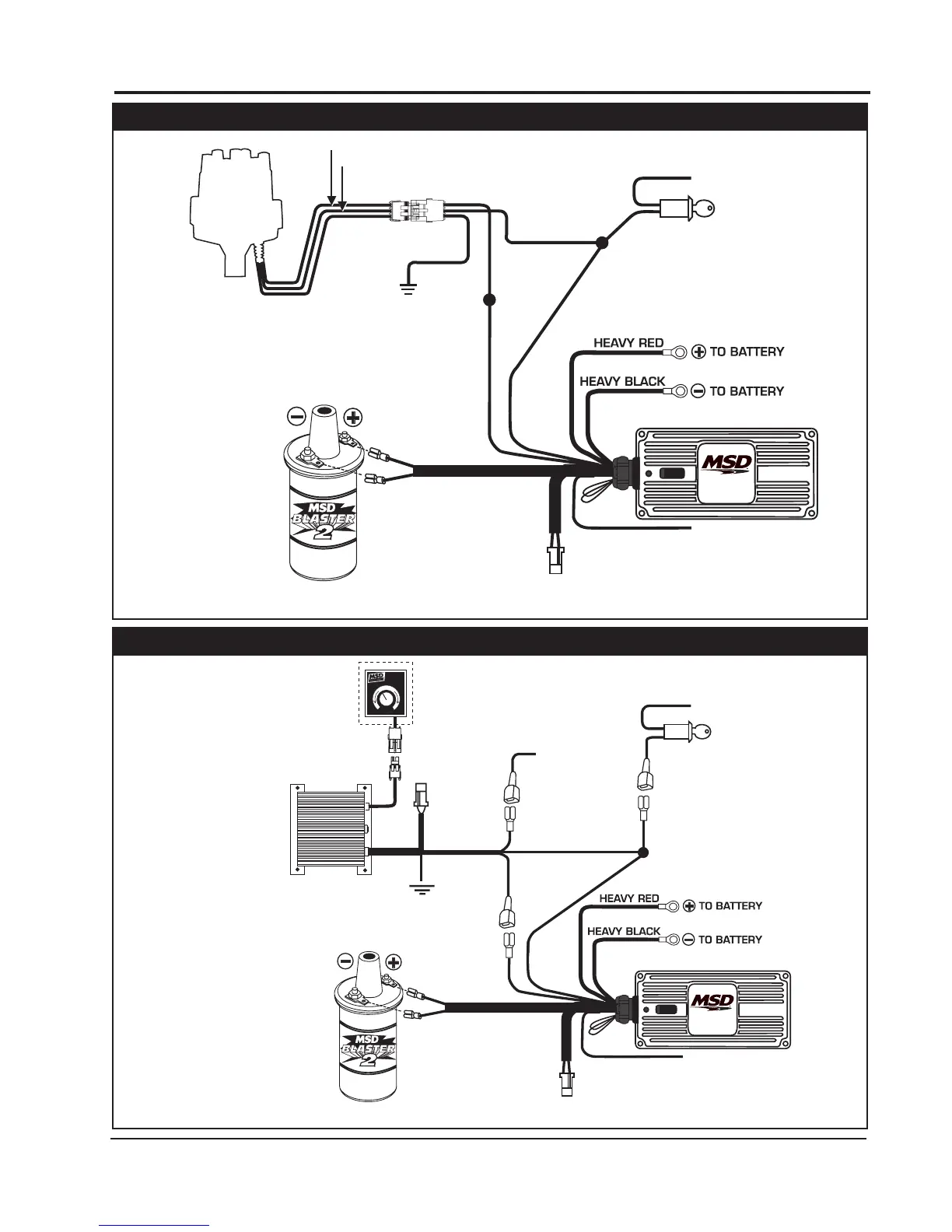

MSD SYSTEMS Installing to an MSD Ready-to-Run Distributor.
INDICATES CONNECTION
•
IGNITION
KEY
TO 12V
ORANGE
WHITE
RED
RED
BLACK
ORANGE
BLACK
TO GROUND
READY-TO-RUN
DISTRIBUTOR
RED
WHITE
ORANGE
BLACK
MAGNETIC PICKUP
(NOT USED)
GRAY
TACH OUTPUT
GREEN (-)
VIOLET (+)
DIGITAL 6AL
REV
LIMITER
MSD SYSTEMS With an MSD Timing Control (points or amplier).
MOST TIMING
CONTROLS
TIMING
CONTROL
UNIT
CONTROL
KNOB
IGN
ITION
TM
MAGNETIC
PICKUP
(NOT USED)
TO GROUND
BLACK
IGNITION
KEY
TO 12V
RED
WHITE
FROM
IGNITION KEY
(ORIGINAL COIL + WIRE)
FROM POINTS
OR ELECTRONIC
IGNITION AMPLIFIER
(ORIGINAL COIL -
WIRE)
WHITE
ORANGE
BLACK
MAGNETIC PICKUP
(NOT USED)
GRAY
TACH OUTPUT
GREEN (-)
VIOLET (+)
RED
DIGITAL 6AL
REV
LIMITER
YELLOW
NOTE: If your Ready-to-
Run Distributor
has a rev limiter,
set it to Zero.
