MS-9638 Server Board
2-6

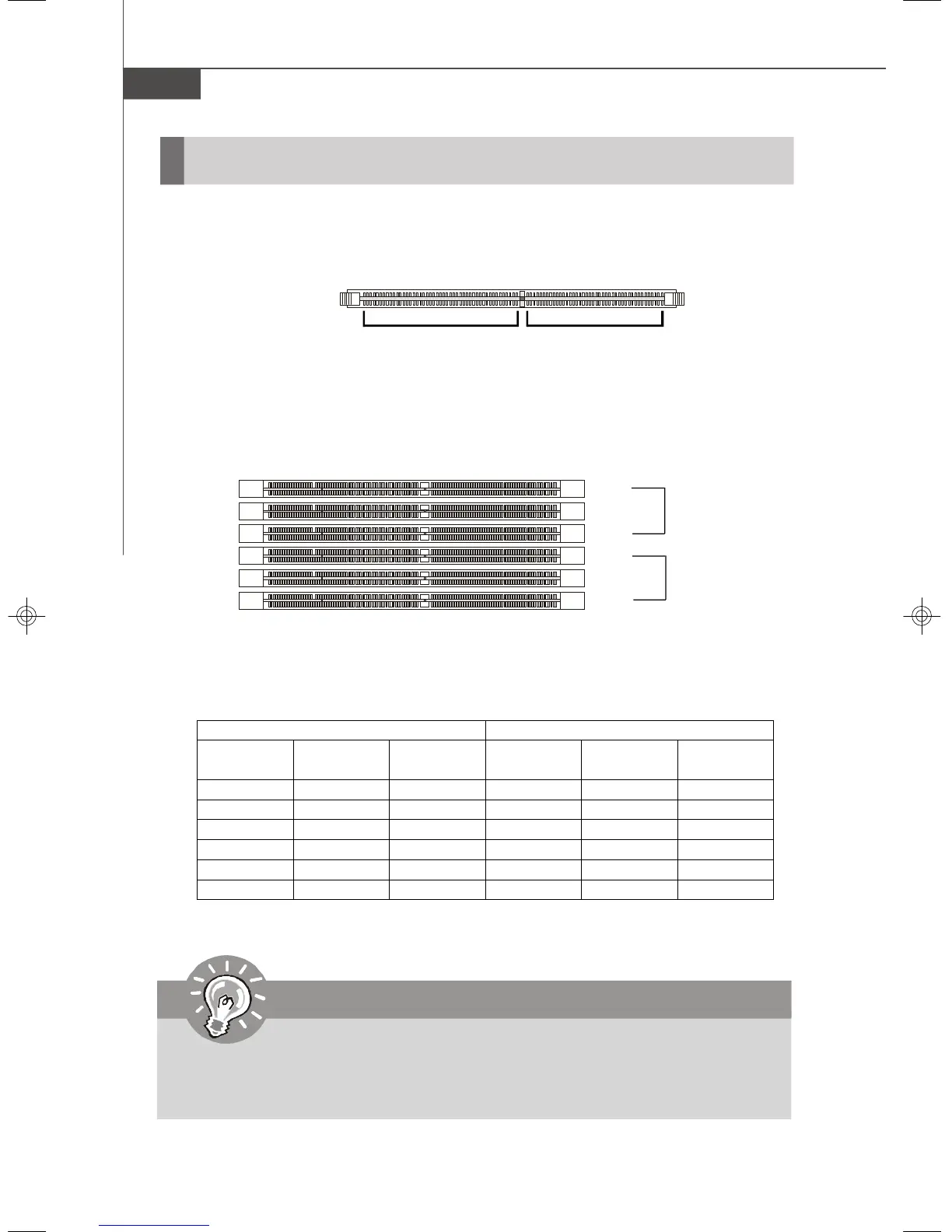

Memory
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
Memory Population Rules
Important
1. To enable successful system boot-up, always insert the memory modules
into the FBD01 first (Channel 0/ 1st).
2. In dual-channel mode, DIMM modules must be of the same type and density.
Check the numbers of your DIMM modules and follow the population rules to install the
memory.
The mainboard provides six 240-pin 533/667MHz ECC DDR2 FB-DIMM slots to sup-
port the maximum of 16GB memory capacity.
Channel 0 Channel 1
1st DIMM
(FBD01)
2nd DIMM
(FBD02)
3rd DIMM
(FBD03)
1st DIMM
(FBD11)
2nd DIMM
(FBD12)
3rd DIMM
(FBD13)
V
V V
V V V
V V
V V V V
V V V V V V
FBD13
FBD12
FBD11
FBD03
FBD02
FBD01
Channel 1
Channel 0
9638v3.0-2.p65 2007/5/8, 下午 01:546
