MSI 694T Pro - Back Panel; Mouse Connector

Hardware Setup
2-7

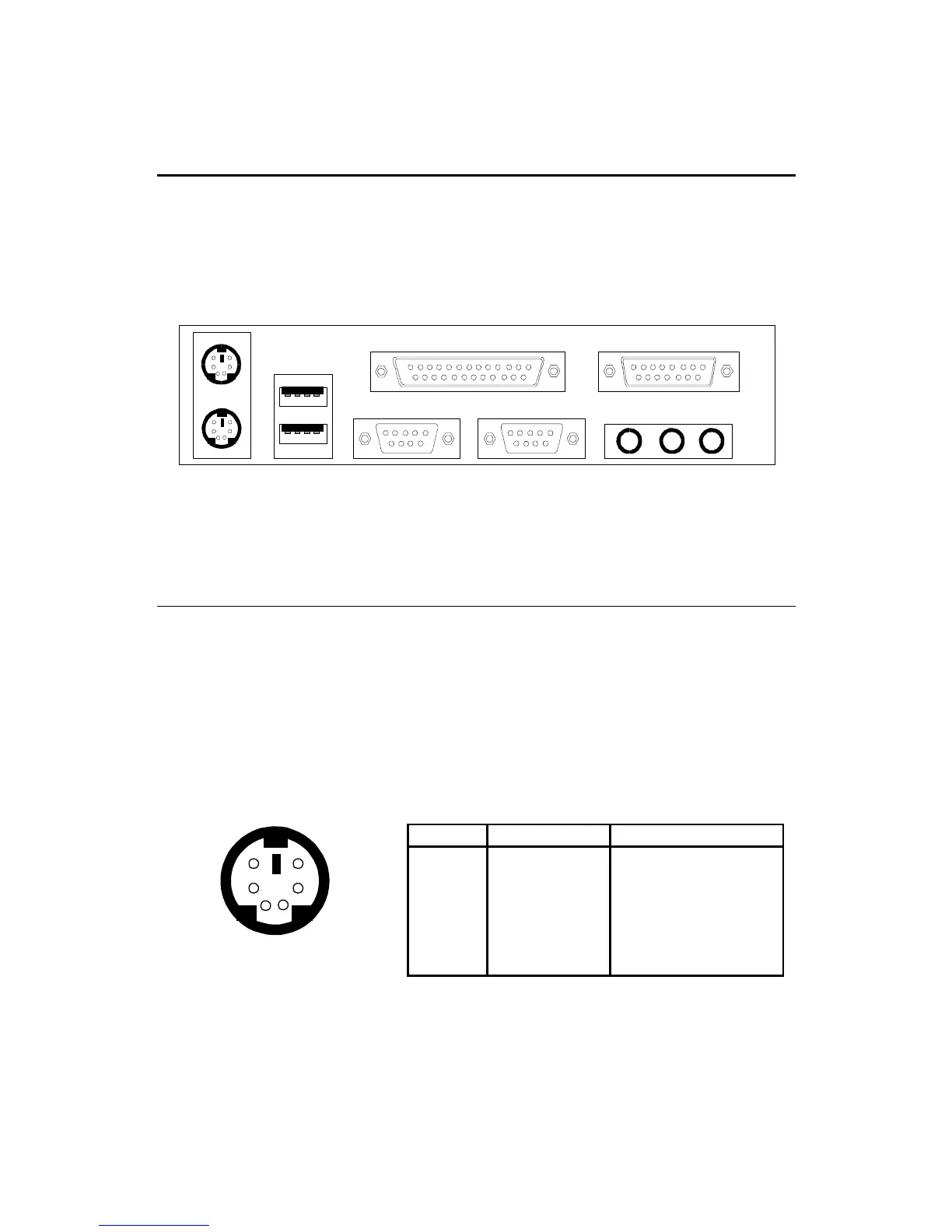

The Back Panel provides the following connectors:
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector
for attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector.
Back Panel
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
Mouse
Keyboard
USB
Parallel
COM A COM B L-out
L-in
MIC
Midi/Joystick
