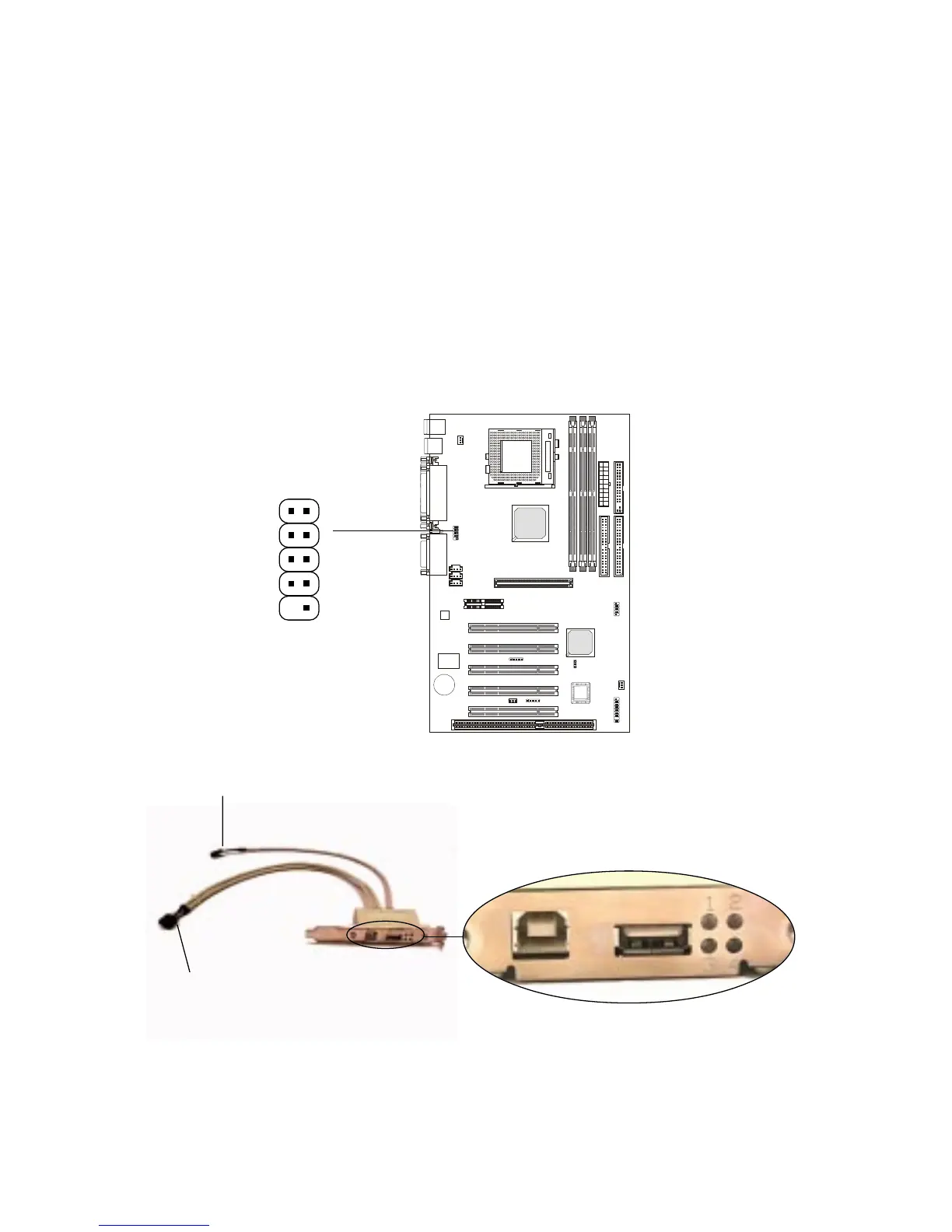

D-Bracket™ Connector: JDLED
Your motherboard comes with JDLED connector and you can connect
an optional D-Bracket™ to JDLED. D-Bracket™ is a USB Bracket integrating
four LEDs whose functions are similar to D-LED™ and allows users to identify
system problem through 16 various combinations of LED signals. For defini-
tions of 16 signal combinations, refer to page 1-10 D-LED™ & D-Bracket™.
D-Bracket™
1
2
3
4
Connected to JDLED
Connected to
USB2
1
9
2
10
JDLED
