MS-6728 ATX Mainboard
B-20

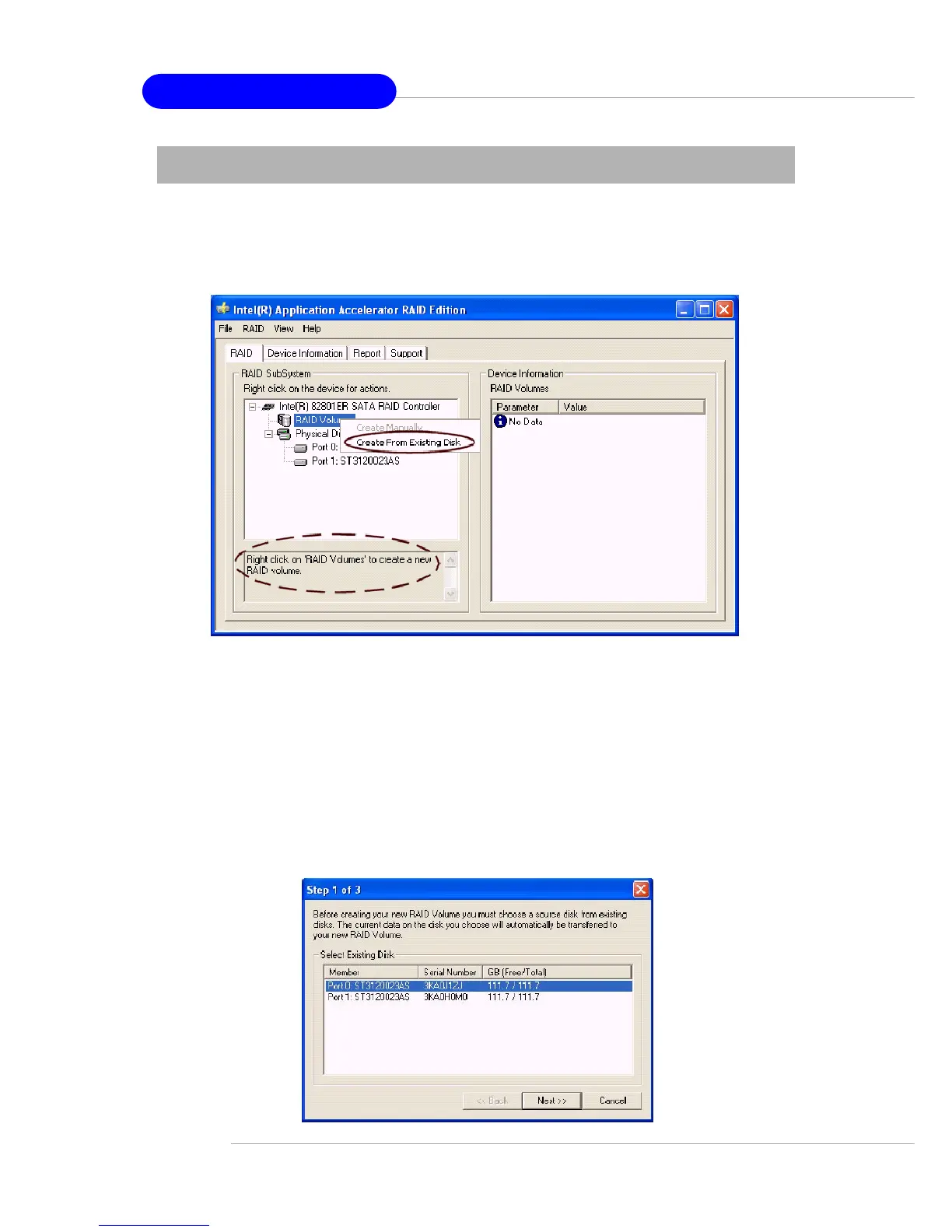

Create RAID Volume from Existing Disk
To create a RAID volume from an existing disk, right-mouse click on
RAID Volume and select Create From Existing Disk to create a new RAID
volume as the screen below. You may also use the RAID drop-down menu and
click on Create Volume from Existing Disk.
(1) Step 1 of 3: Select the source disk
For Step 1, select the source disk that you wish to use and then click Next.
It is very important to note which disk is the source disk (the one containing
all of the information to be migrated) and which one is the target disk. On a
RAID Ready system, this can be determined by making a note during POST of
which port (e.g. Port 0 or Port 1) the single disk is attached to.
You can also use the Intel Application Accelerator RAID Edition utility
before the second disk is installed to verify the Port and serial number of the
drive that contains all the data.
