A-13
Using 4- or 6-Channel Audio Function
Using 2-, 4- & 6- Channel Audio Function
For 865G Neo2-P and 865PE Neo2-P Option 1:
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in
the software utility, connect your speakers to the correct phone jacks in
accordance with the setting in software utility.
2-Channel Mode for Stereo-Speaker Output

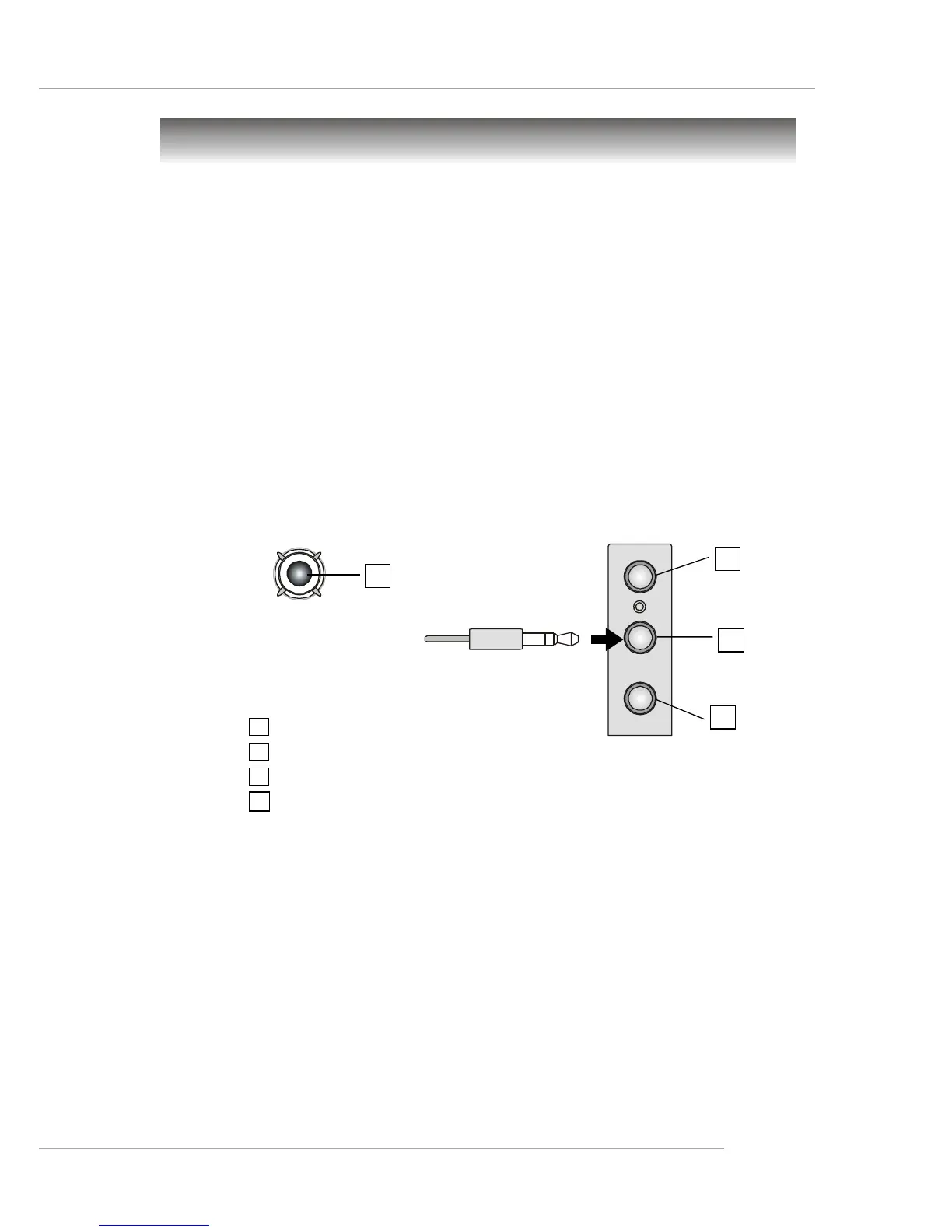

Refer to the following diagram and caption for the function of each
phone jack on the back panel when 2-Channel Mode is selected.
Back Panel
3
1
2
4
1 Line In
2 Line Out (Front channels)
3 MIC
4 SPDIF Coaxial jack
