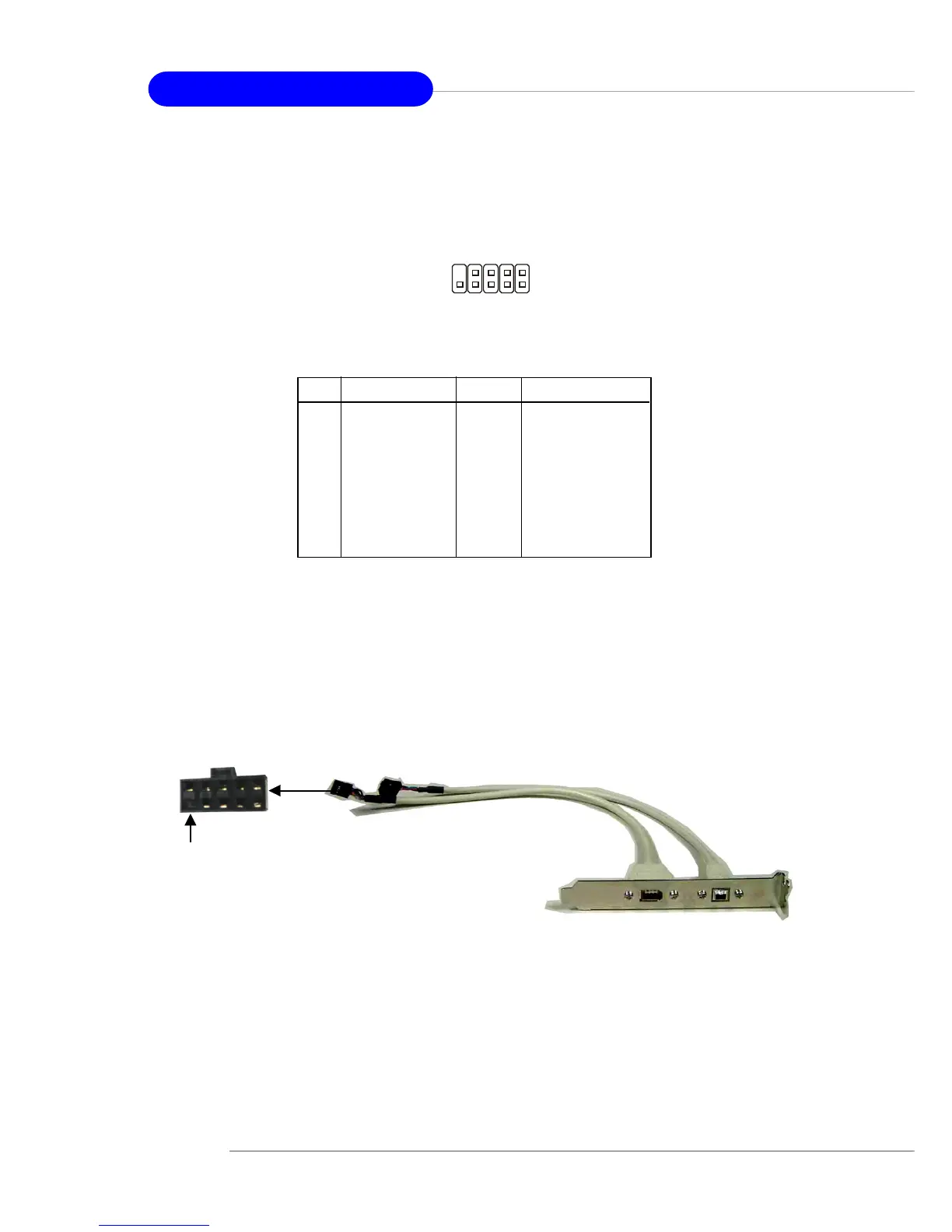

How to attach the IEEE 1394 Port:
1394 Port
IEEE 1394 Connectors: J1394_1, J1394_2 (Optional)
The mainboard provides two 1394 pin headers that allow you to con-
nect optional IEEE 1394 ports.
J1394_1, J1394_2
J1394 Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
9
2
10
1
IEEE1394 Bracket (Optional)
Foolproof
Design
