MSI A320M-A PRO

13
󽒶󻡦󽄚󺼂 󽒶󻡦󽄚󺼂
󼗶󻡦󼐖󻌆󼐖󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󻝮󻺞󼒛󽍊󼏞󼗶󻡦󽄚󺼂󼕊󼐖󻌆󼐖󼖟󼔶󼏢󺪢󽍒󼀊󼕺󼂧󻂺󻃖
1
2 10
9

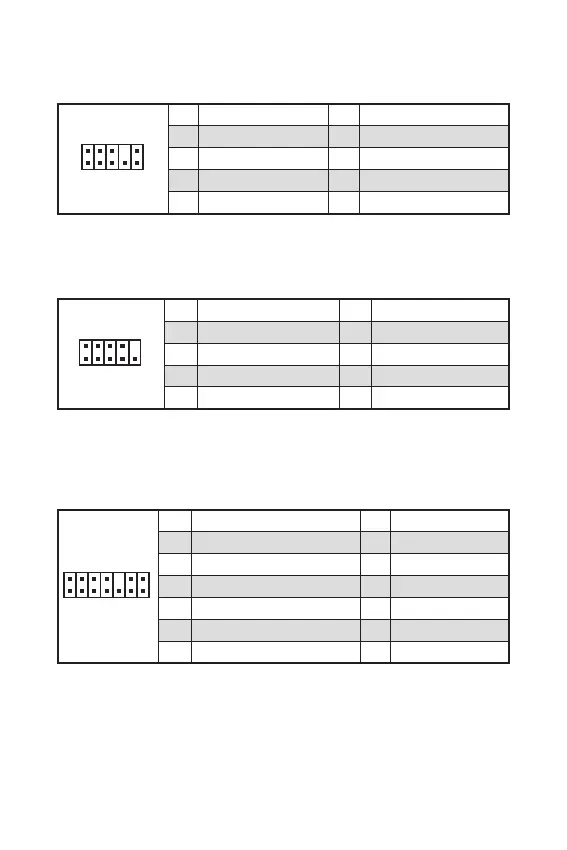

1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
󼃎󻞞󼎮󽇞󽂪󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󼏂󻯾󻖊󼺩󼔶󻺞󼒛󽍊󼏞󼐧󻽊󼕪󼃎󻞞󼎮󽇞󽂪󻝮󼏢󺪢󽍒󼀊󼕺󼂧󻂺󻃖
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
󻢚󻊺󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󻂆󻢚󻊺󼏂󼏢󺪢󻈛󻂺󻃖󼖂󻼪󽍎󺺦󼒛󺫮
󻺞󼒛󻨛󻪇󼔲󻫦󼌺󽋾󻖝󽇮󻼖󻡷󻼎󻝮󼨪󼙢󽍊󻼪󼒆
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground
