MSI A320M-A PRO - JFP1, JFP2: Разъемы Передней Панели; SATA1~4: Разъемы SATA 6 Гб;С

10




1
2 10
9

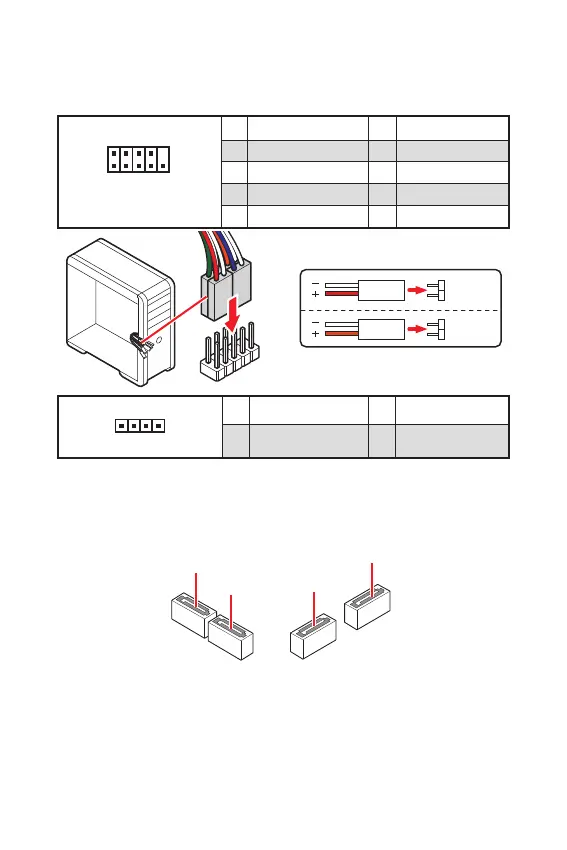

JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED



SATA4
SATA2
SATA3
SATA1


 

 


