MSI H67MA-E35 (B3) - 组件快速指南

Sc-4

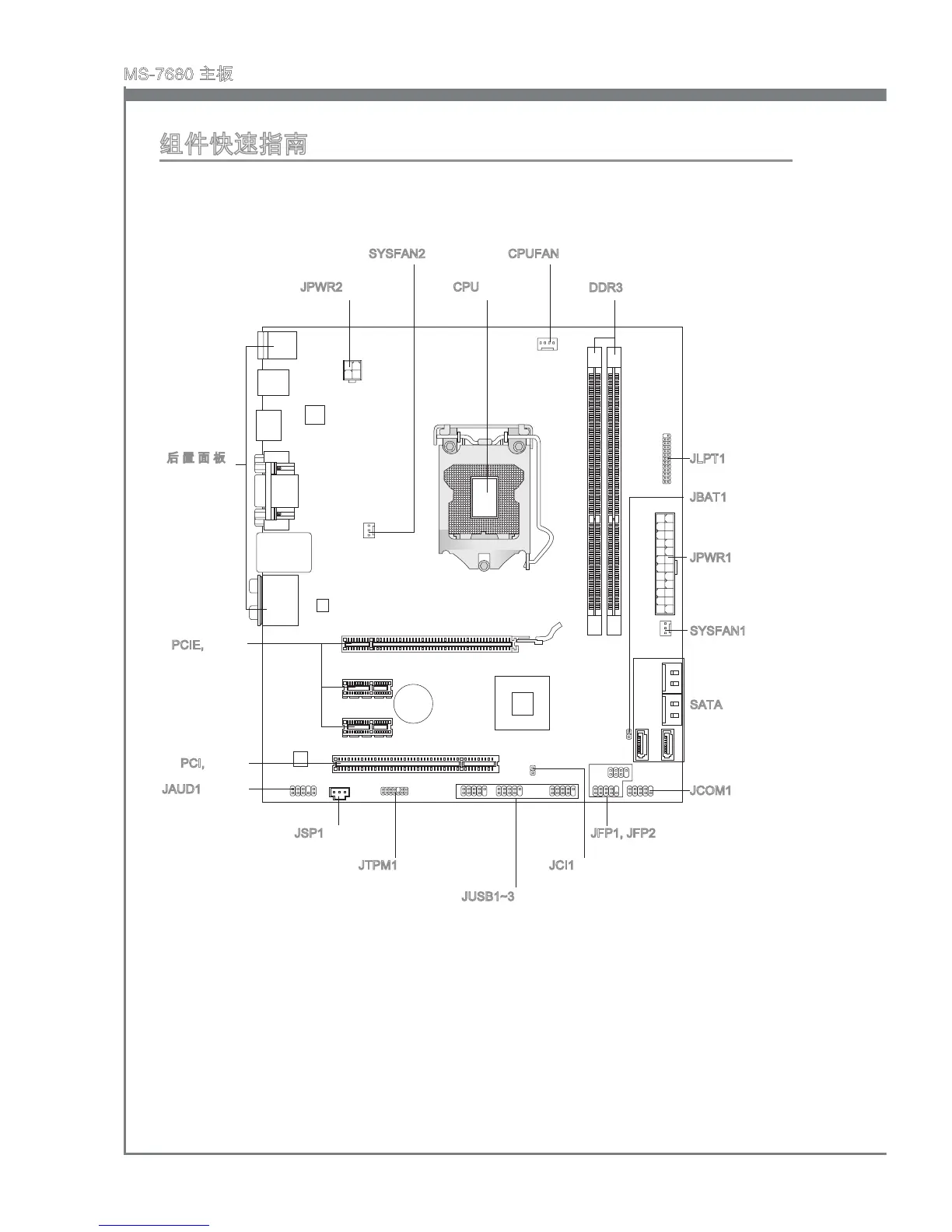

MS-7680 主板
组件快速指南
后 置 面 板 ,
Sc-13
CPU, Sc-6
CPUFAN, Sc-16
DDR3, Sc-10
JPWR2, Sc-12
PCIE, Sc-22
SYSFAN1, Sc-16
SYSFAN2, Sc-16
JAUD1, Sc-17
JSP1, Sc-18
JTPM1, Sc-19 JCI1, Sc-20
JBAT1, Sc-21
JUSB1~3, Sc-17
JFP1, JFP2, Sc-16
SATA, Sc-15
JPWR1, Sc-12
JCOM1, Sc-18
JLPT1, Sc-20
PCI, Sc-22
