Connectors

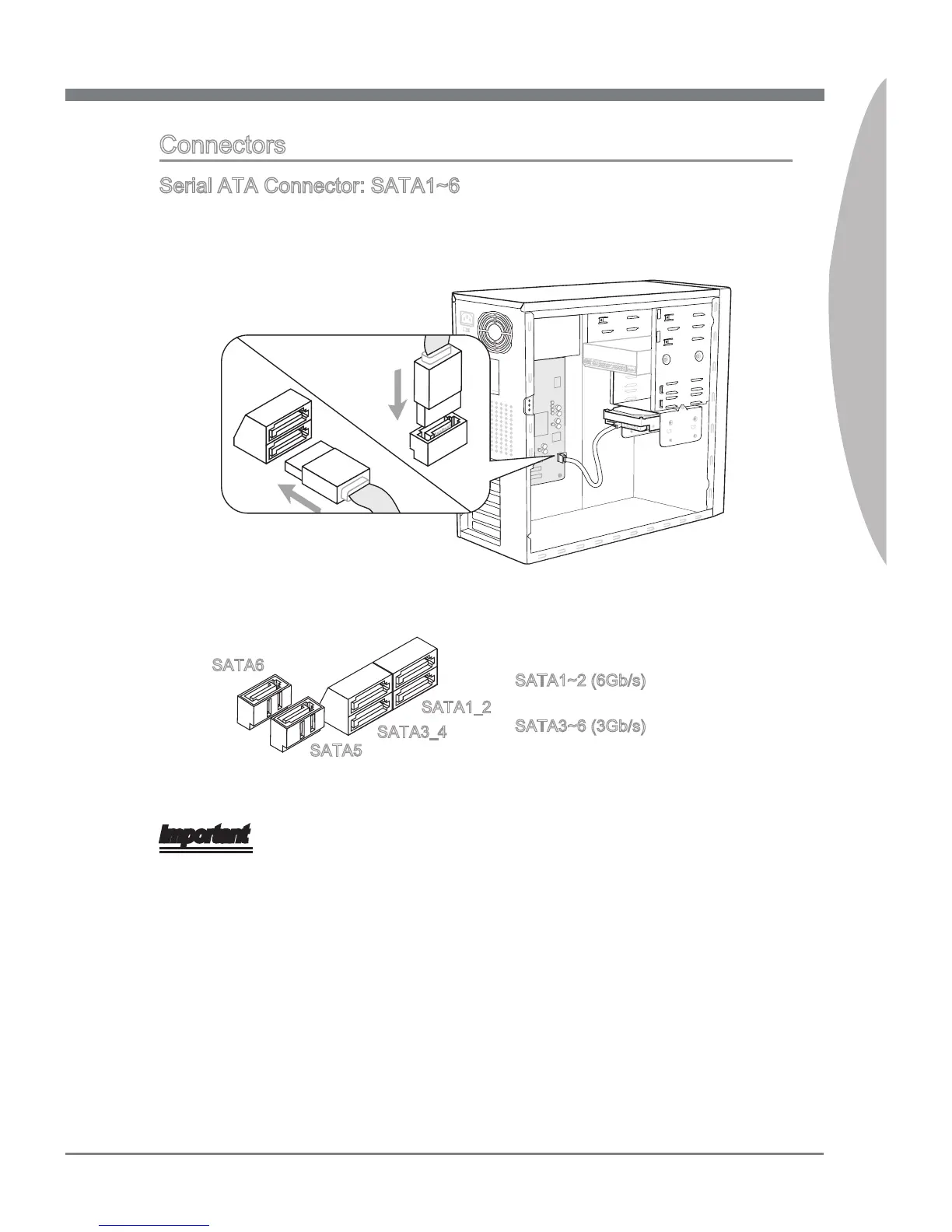

Seral ATA Connector: SATA1~6
Ths connector s a hgh-speed Seral ATA nterface port. Each connector can connect
to one Seral ATA devce.
* The MB layout n ths 󰘰gure s for reference only.
SATA1~2 (6Gb/s)
SATA3~6 (3Gb/s)
SATA3_4
SATA1_2
SATA5
SATA6
Important
Please do not fold the Seral ATA cable nto a 90-degree angle. Otherwse, data loss
may occur durng transmsson.
