MSI MEG X299 CREATION - Block Diagram

23

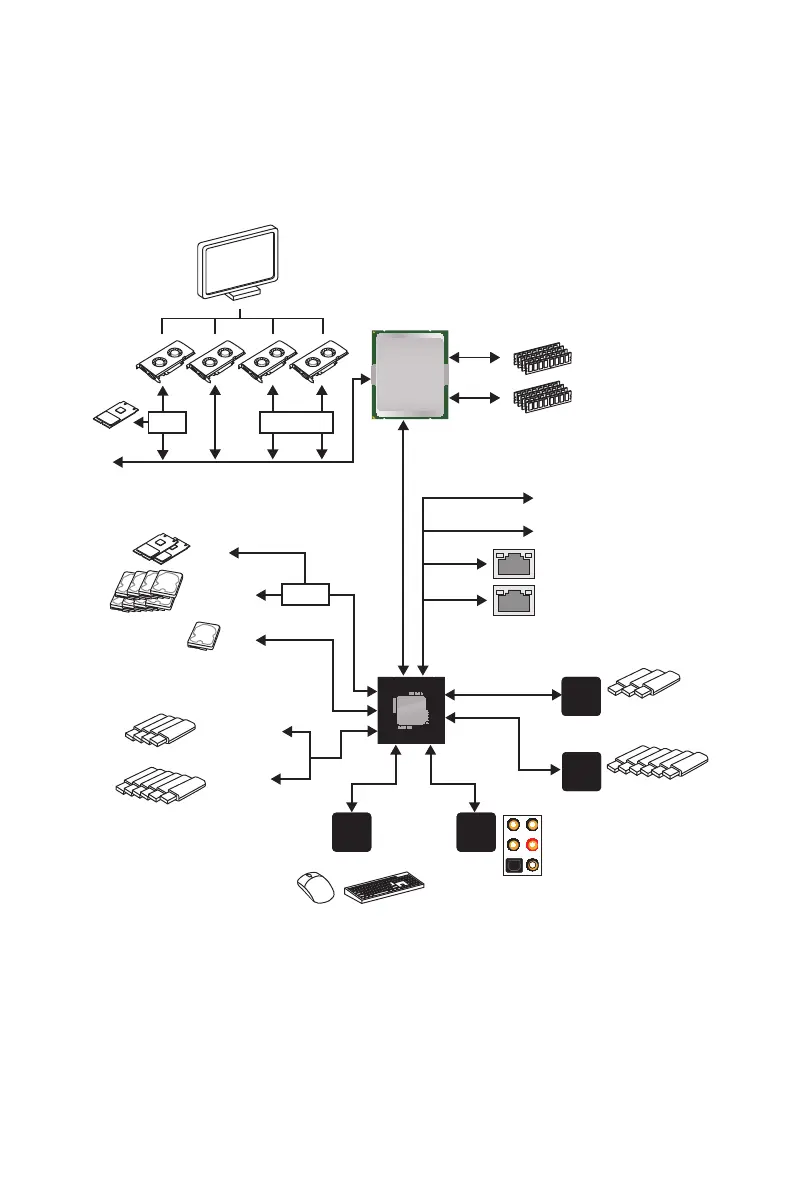

Block Diagram
Block Diagram
x2
(Rear + Front)
6x USB 3.1 Gen1
2/ 4 Channel DDR4 Memory
3x USB 3.1 Gen2
2x M.2
PCIE Bus
PCIE Bus
PCIE Bus
Wi-Fi /
Bluetooth
DMI 3.0
PCI Express Bus
X299 PCH
Processor
NV6797
Super I/O
Realtek
ALC1220
ASMEDIA
ASM1074
Switch
8x SATA 6Gb/s
4x USB 3.1 Gen1
6x USB 2.0
1x U.2
PCIe x1 slot
ASMEDIA
ASM3142
Audio Jacks
P/S2 Mouse / Keyboard
1x M.2
SwitchSwitch
Realtek 8125
Intel I219
