MSI MEG X299 CREATION - Audio Ports Configuration

25
Rear I/O Panel
AUDIO INPUT
Rear Front
Side Center/
Subwoofer

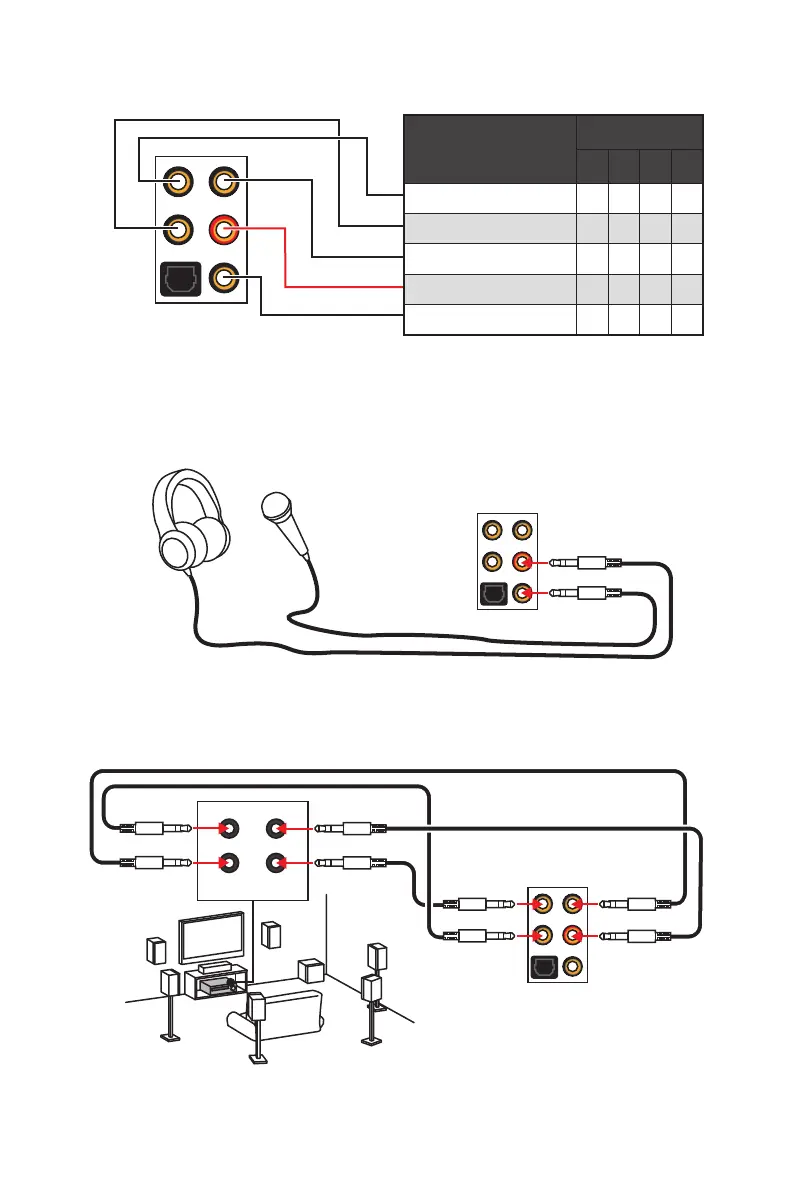

Audio jacks to headphone and microphone diagram
Audio jacks to 7.1-channel speakers diagram
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
