MSI MEG X299 CREATION User Manual

55
Overview of Components

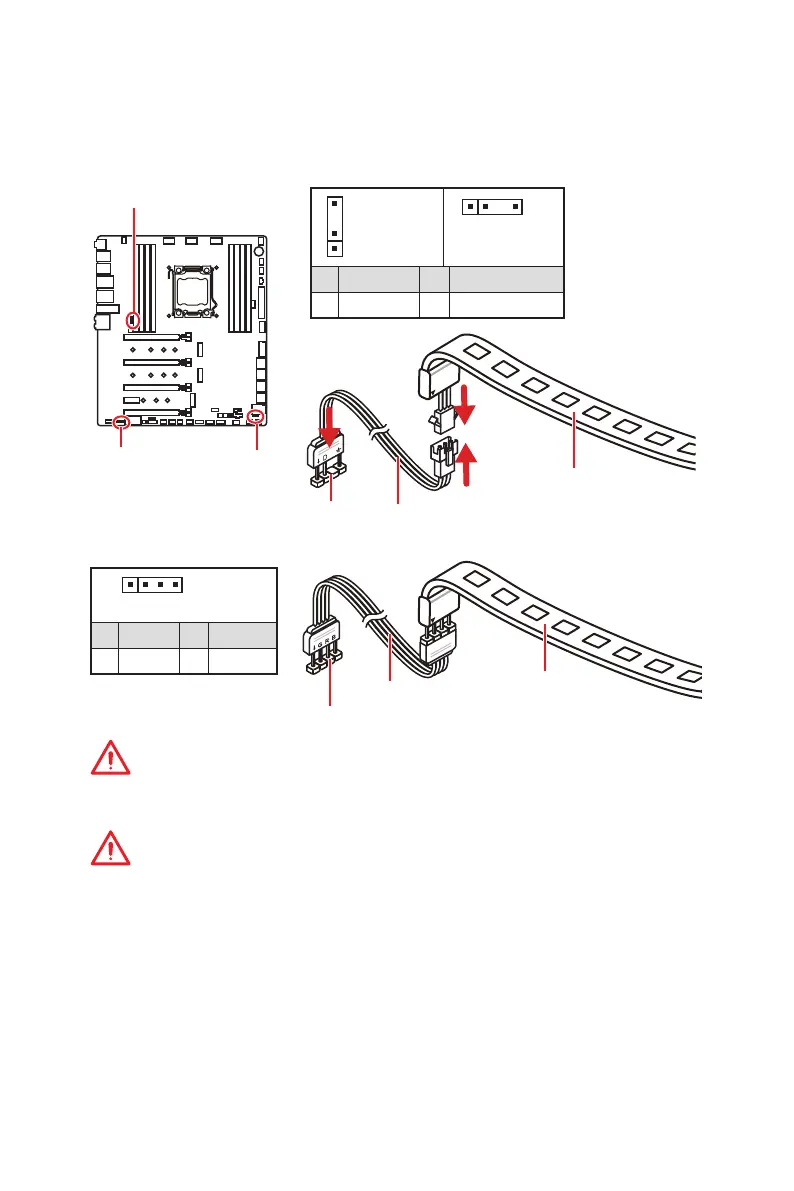

JRGB1, JRAINBOW1~2: RGB LED connectors
The JRGB connector allows you to connect the 5050 RGB LED strips 12V. The
JRAINBOW connector allows you to connect the WS2812B Individually Addressable
RGB LED strips 5V.
1
JRGB
Extension cable
LED strip
1
JRGB1
1 +12V 2 G
3 R 4 B
JRAINBOW2
JRAINBOW1
JRGB1
CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW
connector provide different voltages, and connecting the 5V LED strip to the JRGB
connector will result in damage to the LED strip.
Important
y The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
y The JRAINBOW connector supports up to 75 LEDs WS2812B Individually Addressable
RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A (5V). In the
case of 20% brightness, the connector supports up to 200 LEDs.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MSI’s software to control the extended LED strip.
1
JRAINBOW
Rainbow RGB LED
extension cable
WS2812B Individually
Addressable RGB LED strips 5V
1
JRAINBOW1
1
JRAINBOW2
1 +5V 2 Data
3 No Pin 4 Ground

MSI MEG X299 CREATION Specifications

General

Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	4100, 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200 MHz
Processor socket	LGA 2066 (Socket R4)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ X-series
Supported processor sockets	LGA 2066
USB 2.0 connectors	2
ATX Power connector (24-pin)	Yes
Number of SATA II connectors	0
Number of SATA III connectors	8
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, U.2
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	Intel® X299
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10
LAN controller	Realtek RTL8125-CG, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Parallel processing technology support	CrossFire, SLI
Cables included	SATA

Weight and Dimensions

Depth	272 mm
Width	305 mm
