Overview of Components

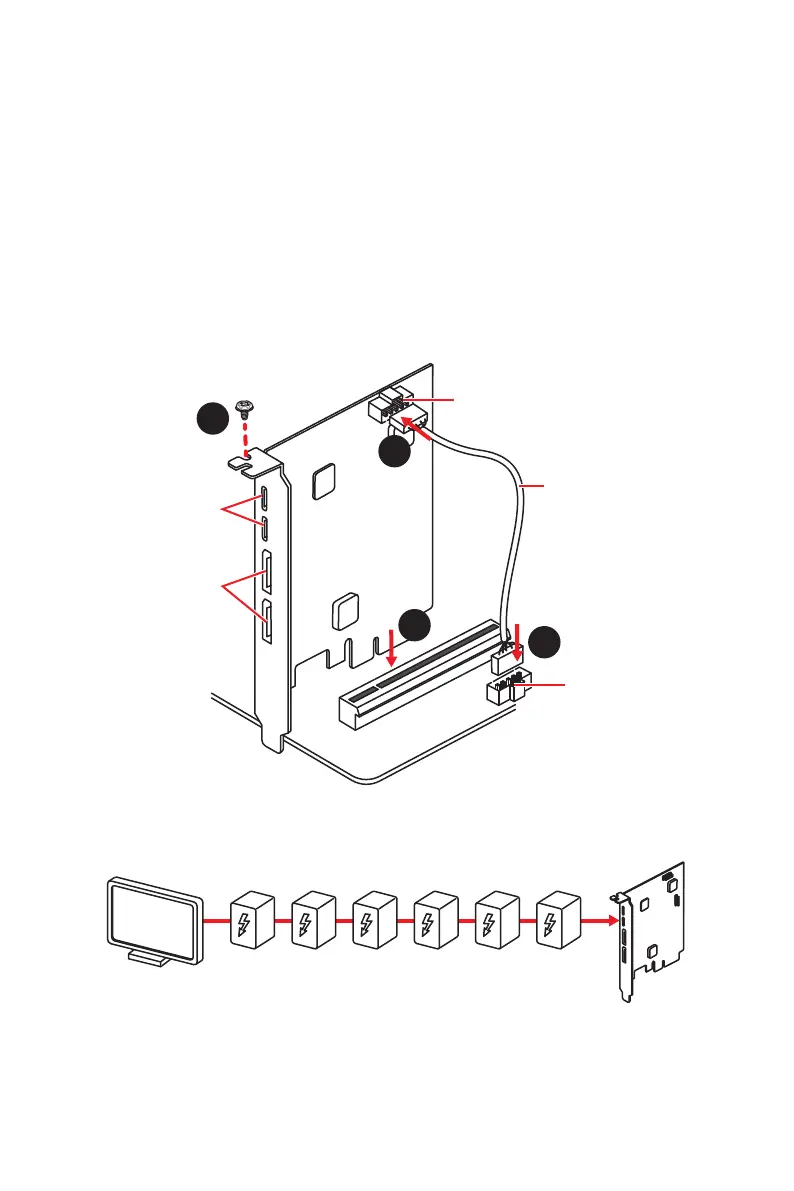

Installing ThunderboltM3 Card
1. Insert the ThunderboltM3 into the PCIe 3.0 x4 Thunderbolt supportive slot.
2. Connect one end of the Thunderbolt cable to the J1 connector on the card.
3. Connect the other end of the Thunderbolt cable to the JTBT1 connector on the
motherboard.
4. Use the screw to secure the ThunderboltM3.
5. Connect one end of the DisplayPort cable to DP IN port on the ThunderboltM3.
6. Connect the other end of the DisplayPort cable to DP port on the graphics card.
7. Enabling Thunderbolt Technology in the BIOS.
1
2
3
4
USB 3.1 Type-C/
Thunderbolt™ 3
ports
DP IN ports
J1 connector
JTBT1 connector
Thunderbolt cable
Daisy-Chain Thunderbolt drives and DisplayPort monitor
Daisy-Chain up to six Thunderbolt devices
