MSI MPG Z690 EDGE WIFI DDR4 User Manual

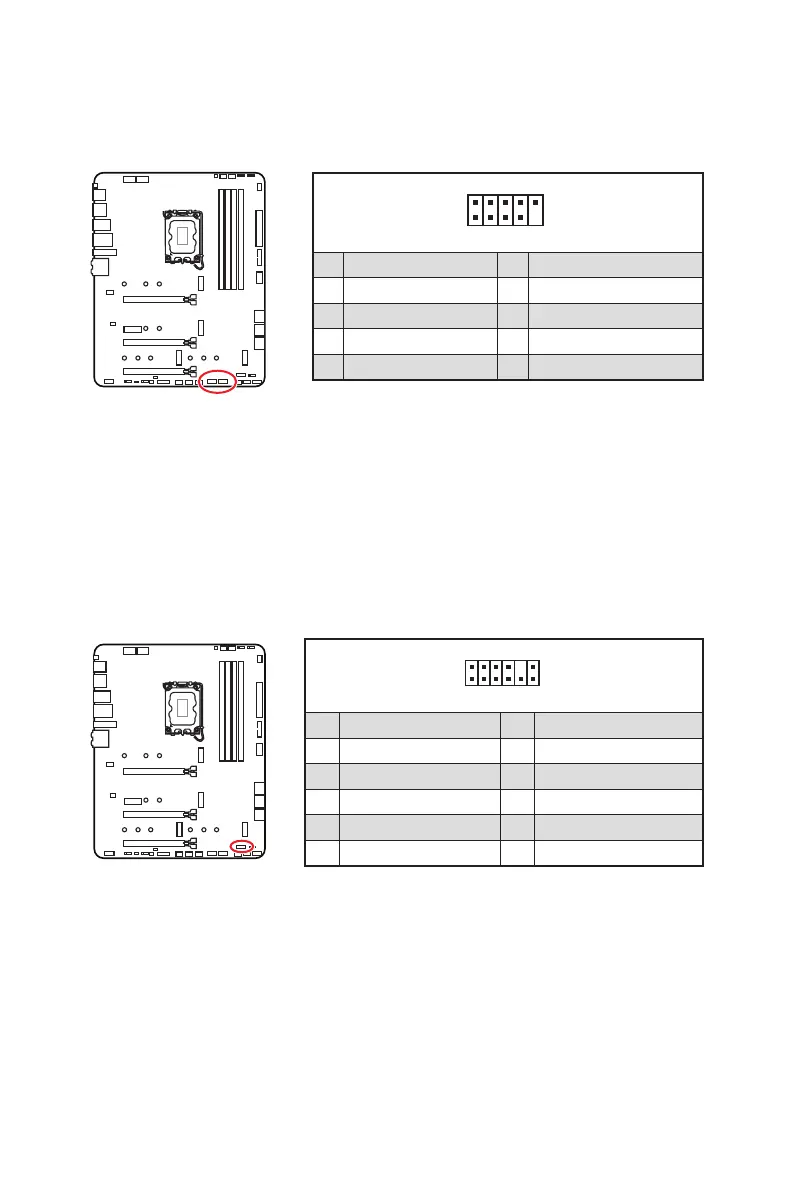

27




1
2 10
9
1 VCC 2 VCC
3  4 
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC


 

 

1
2 12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request




MSI MPG Z690 EDGE WIFI DDR4 Specifications

General

Form Factor	atx
OS Compatibility	windows 10, windows 11 home
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr4
Memory Speeds	1r 2133/ 2666/ 2933/ 3200 mhz (by jedec & por)
SATA Connectors	6x sata 6g
Wireless Standard	ac
Wireless Networking Standard	wi-fi 6
Wireless Connectivity	bluetooth, wi-fi
USB Ports	2 x usb-c 3.2, 7 x usb-a 3.2, 2 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	7.1
M.2 Slots	4

Weight and Dimensions

Width	243.84 millimeters
