MSI MPG Z690 EDGE WIFI DDR4 User Manual

23
Overview of Components


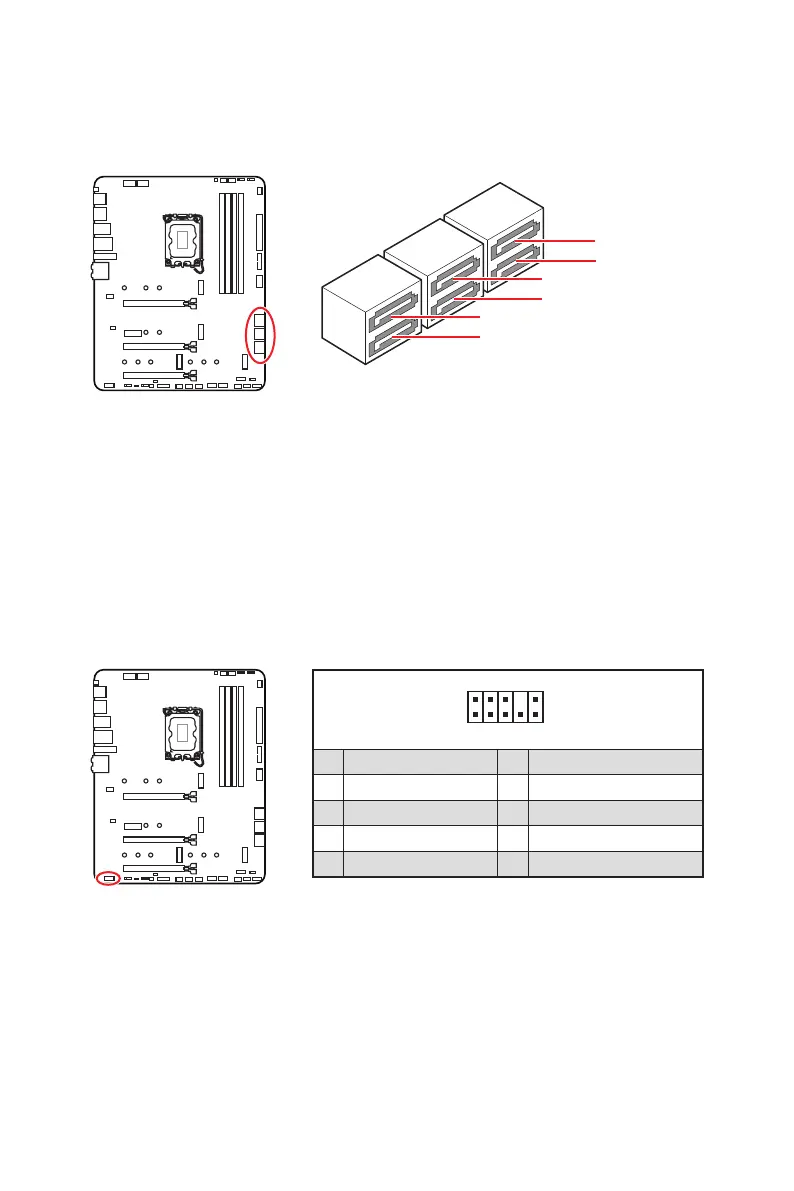

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATAA
SATA7
SATA5
SATAB
SATA8
SATA6

Important
 
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI MPG Z690 EDGE WIFI DDR4 Specifications

General

Form Factor	atx
OS Compatibility	windows 10, windows 11 home
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr4
Memory Speeds	1r 2133/ 2666/ 2933/ 3200 mhz (by jedec & por)
SATA Connectors	6x sata 6g
Wireless Standard	ac
Wireless Networking Standard	wi-fi 6
Wireless Connectivity	bluetooth, wi-fi
USB Ports	2 x usb-c 3.2, 7 x usb-a 3.2, 2 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	7.1
M.2 Slots	4

Weight and Dimensions

Width	243.84 millimeters
