MSI MPG Z690 EDGE WIFI DDR4 User Manual

28

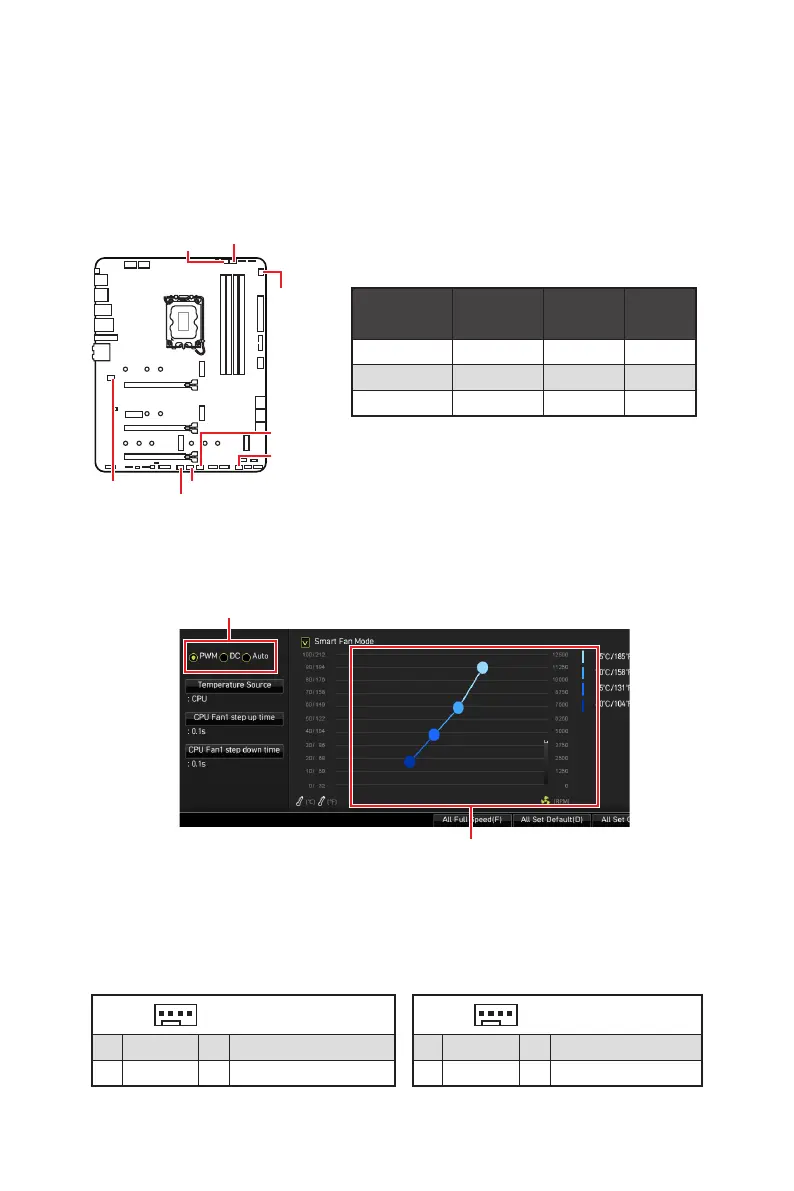

Overview of Components

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
The auto mode fan connectors can automatically detect PWM and DC mode. However,
you can follow the instruction below to adjust the fan connector to PWM or DC Mode
manually.
Switching fan mode and adjusting fan speed
You can switch between PWM mode and DC mode and adjust fan speed in 
HARDWARE MONITOR.
Select PWM mode or DC mode

Important
Make sure fans are working properly after switching the PWM/ DC mode.
There are gradient points of the fan speed that allow you to adjust
fan speed in relation to CPU temperature.
Pin definition of fan connectors
Connector
Default
fan mode
Max.
current
Max.
power
CPU_FAN1 Auto mode 2A 24W
PUMP_FAN1 PWM mode 3A 36W
SYS_FAN1~6 DC mode 1A 12W
1
PWM Mode pin definition
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1
DC Mode pin definition
1 Ground 2 Voltage Control
3 Sense 4 NC
SYS_FAN1
SYS_FAN3
SYS_FAN5
SYS_FAN4
PUMP_FAN1
CPU_FAN1
SYS_FAN2
SYS_FAN6

MSI MPG Z690 EDGE WIFI DDR4 Specifications

General

Form Factor	atx
OS Compatibility	windows 10, windows 11 home
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr4
Memory Speeds	1r 2133/ 2666/ 2933/ 3200 mhz (by jedec & por)
SATA Connectors	6x sata 6g
Wireless Standard	ac
Wireless Networking Standard	wi-fi 6
Wireless Connectivity	bluetooth, wi-fi
USB Ports	2 x usb-c 3.2, 7 x usb-a 3.2, 2 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	7.1
M.2 Slots	4

Weight and Dimensions

Width	243.84 millimeters
