Overview of Components



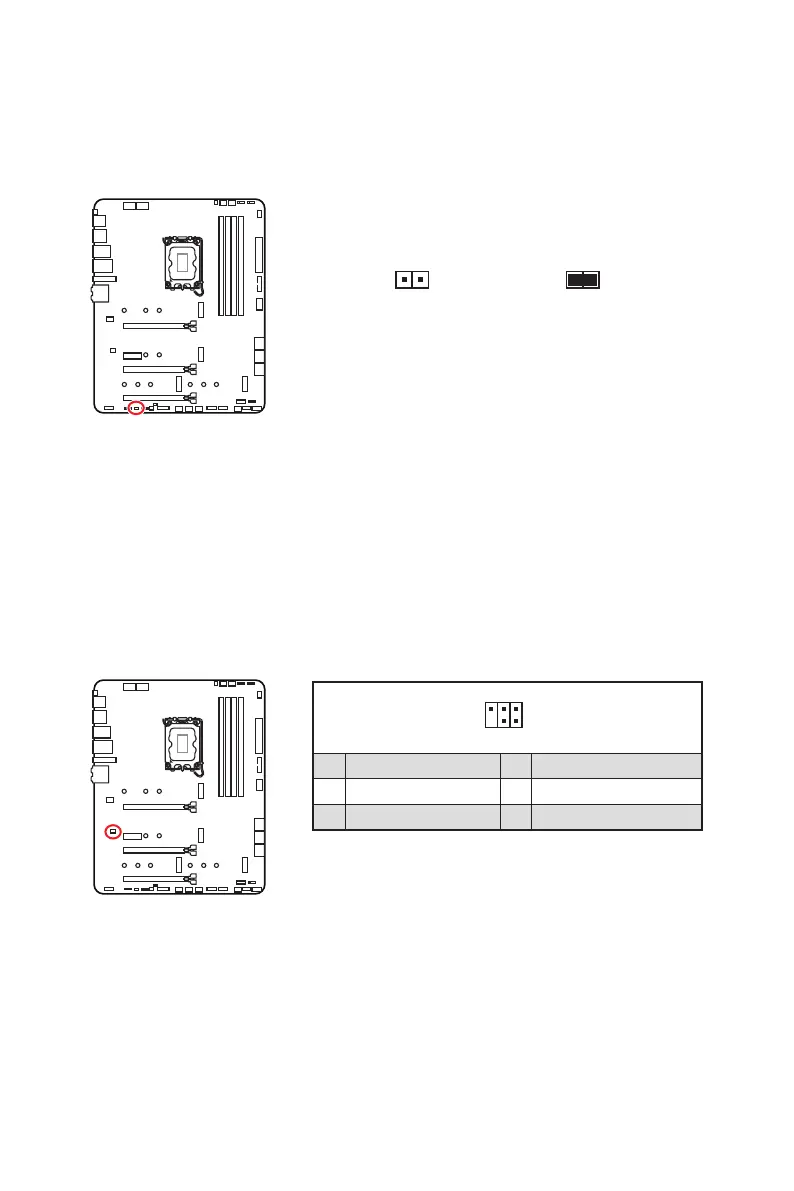

There is CMOS memory onboard that is external powered from a battery located on

the motherboard to save system configuration data. If you want to clear the system

configuration, set the jumpers to clear the CMOS memory.

Keep Data

(default)

Clear CMOS/

Reset BIOS



1. Power off the computer and unplug the power cord.

2. Use a jumper cap to short 

3. Remove the jumper cap from .

4. Plug the power cord and Power on the computer.

JDASH1 : Tuning Controller connector

This connector is used to connect an optional Tuning Controller module.

2 6

1 No Pin 2 NC

3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M

5 VCC5 6 Ground
