Overview of Components

Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 Please use MSI’s software to control the extended LED strip.


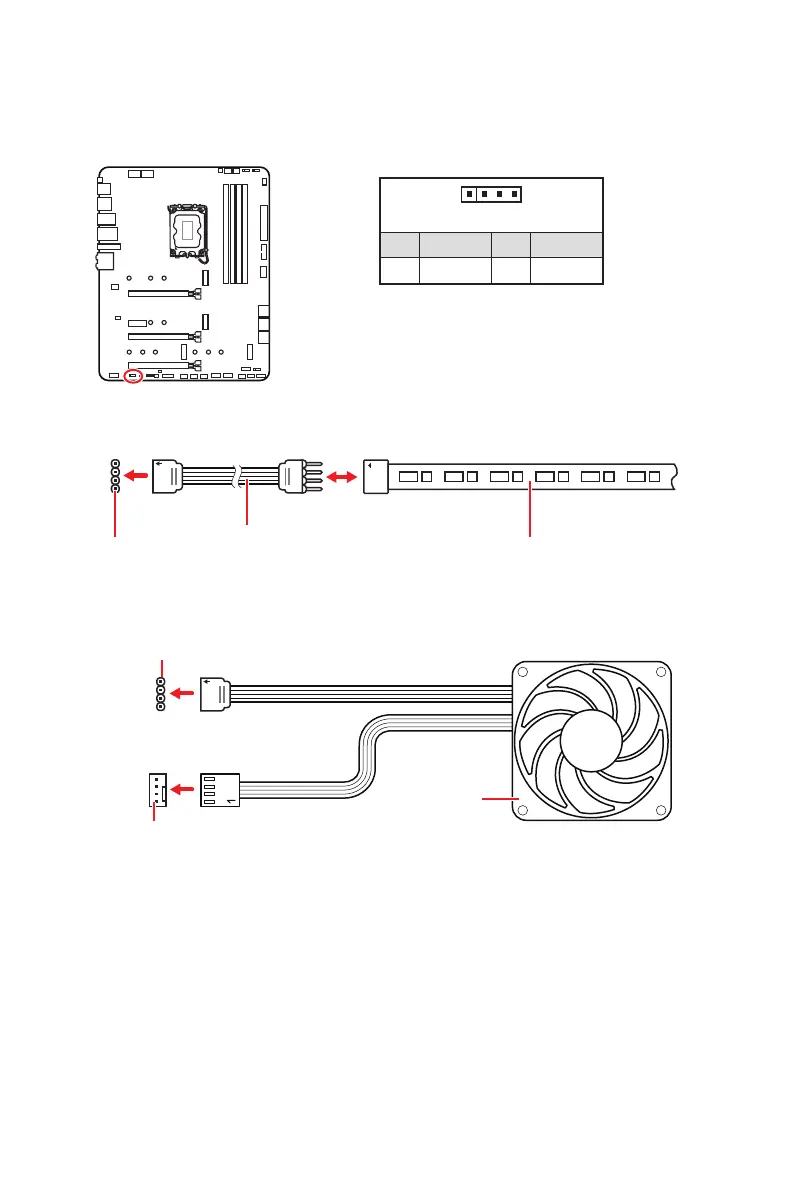

The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
JRGB extension
cable
5050 RGB LED strips 12V
1
1 +12V 2 G
3 R 4 B

1
1
G
R
B
JRGB connector
System Fan connector

RGB LED Fan

MSI MPG Z690 EDGE WIFI DDR4 Specifications

General

Form Factor	atx
OS Compatibility	windows 10, windows 11 home
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr4
Memory Speeds	1r 2133/ 2666/ 2933/ 3200 mhz (by jedec & por)
SATA Connectors	6x sata 6g
Wireless Standard	ac
Wireless Networking Standard	wi-fi 6
Wireless Connectivity	bluetooth, wi-fi
USB Ports	2 x usb-c 3.2, 7 x usb-a 3.2, 2 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	7.1
M.2 Slots	4

Weight and Dimensions

Width	243.84 millimeters
