MSI MS-14L1 - Thermal Module; Thermal Module Disassembly; Thermal Module Assembly

2-18 2-19
Disassembly and Assembly
Thermal Module

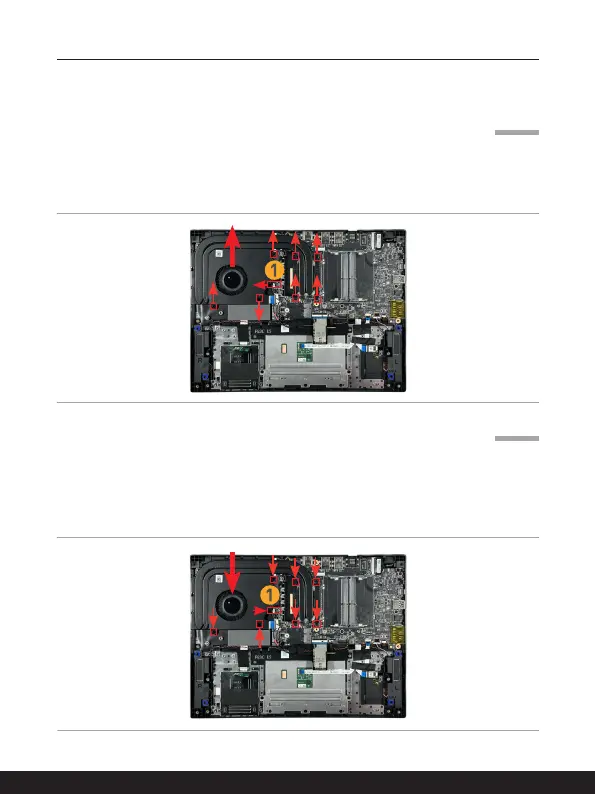

Thermal Module Disassembly
1. Disconnect the fan cable connector.
2. Loosen all the screws that secure the thermal module with a cross type screwdriver.
3. Remove the thermal module vertically with care.
Thermal Module Assembly
1. To assemble the thermal module, align and install the thermal module with correct
orientation.
2. Secure the thermal module with screws.
3. Connect the fan cable connector.
