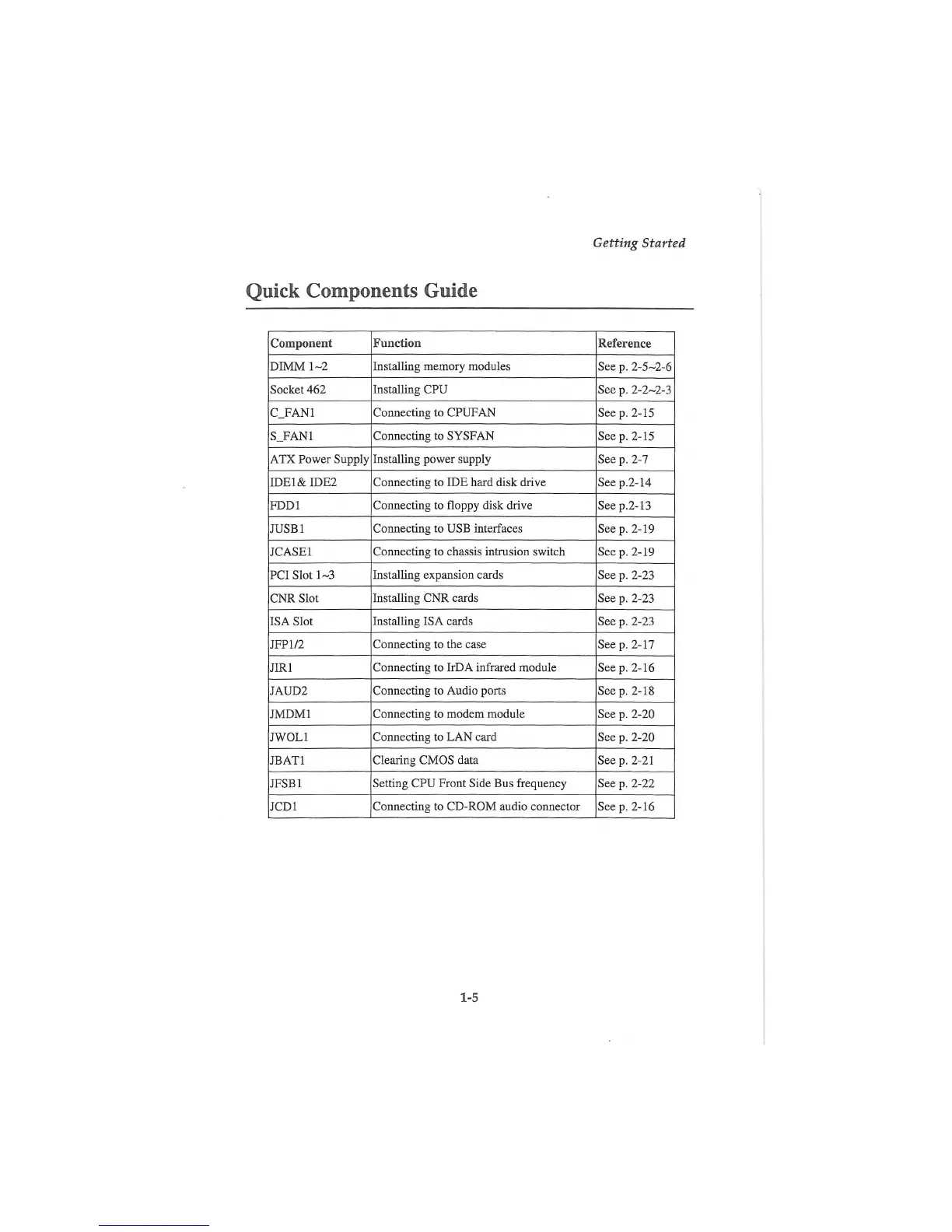

Quick Components Guide
Getting Started
Component
Function
Reference
DIMM 1-2 Installing memory modules See p. 2-5-2-6
Socket 462
Installing CPU See p. 2-2-2-3
C_FAN1
Connecting to CPUFAN Seep. 2-15
SJFAN1
Connecting to SYSFAN Seep. 2-15
ATX Power Supply
Installing power supply Seep. 2-7
IDE1&IDE2 Connecting to IDE hard disk drive See p.2-14
FDD1
Connecting to floppy disk drive
See p.2-13
JUSB1
Connecting to USB interfaces
Seep. 2-19
JCASE1
Connecting to chassis intrusion switch Seep. 2-19
PCI Slot 1-3
Installing expansion cards See p. 2-23
CNR Slot
Installing CNR cards
See p. 2-23
ISA Slot
Installing ISA cards See p. 2-23
JFP1/2
Connecting to the case
Seep. 2-17
JIR1
Connecting to IrDA infrared module
Seep. 2-16
JAUD2
Connecting to Audio ports Seep. 2-18
JMDM1
Connecting to modem module
See p. 2-20
JWOL1
Connecting to LAN card See p. 2-20
JBAT1
Clearing CMOS data Seep. 2-21
JFSB1
Setting CPU Front Side Bus frequency See p. 2-22
JCD1
Connecting to CD-ROM audio connector
Seep. 2-16
1-5
