MSI MS-6378 - Front Panel Connectors: JFP1 & JFP2

Hardware Setup

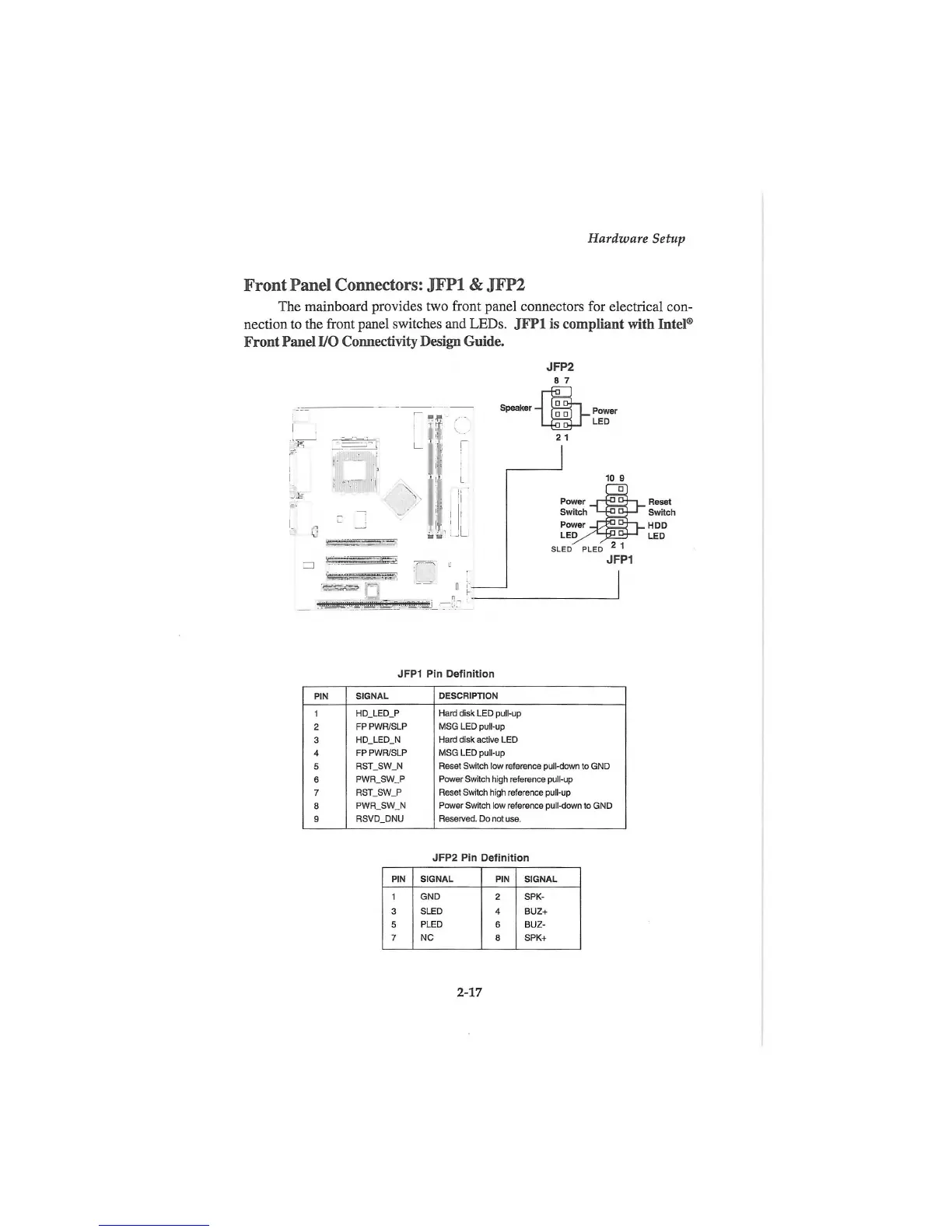

Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical con-
nection to the front panel switches and LEDs. JFP1 is compliant with Intel®
Front Panel I/O Connectivity Design Guide.
JFP2
8 7
JFP1 Pin Definition
PIN SIGNAL
DESCRIPTION
1
HD_LED_P
Hard disk LED pull-up
2
FP PWR/SLP MSG LED pull-up
3
HD_LED_N Hard disk active LED
4 FP PWR/SLP
MSG LED pull-up
5
RST_SW_N
Reset Switch low reference pull-down to GND
6
PWR_SW_P Power Switch high reference pull-up
7
RST_SW_P
Reset Switch high reference pull-up
8
PWR_SW_N Power Switch low reference pull-down to GND
9
RSVD_DNU
Reserved. Do not use.
JFP2 Pin Definition
PIN
SIGNAL PIN
SIGNAL
1
GND
2 SPK-
3
SLED
4 BUZ+
5
PLED
6 BUZ-
7 NC
8 SPK+
