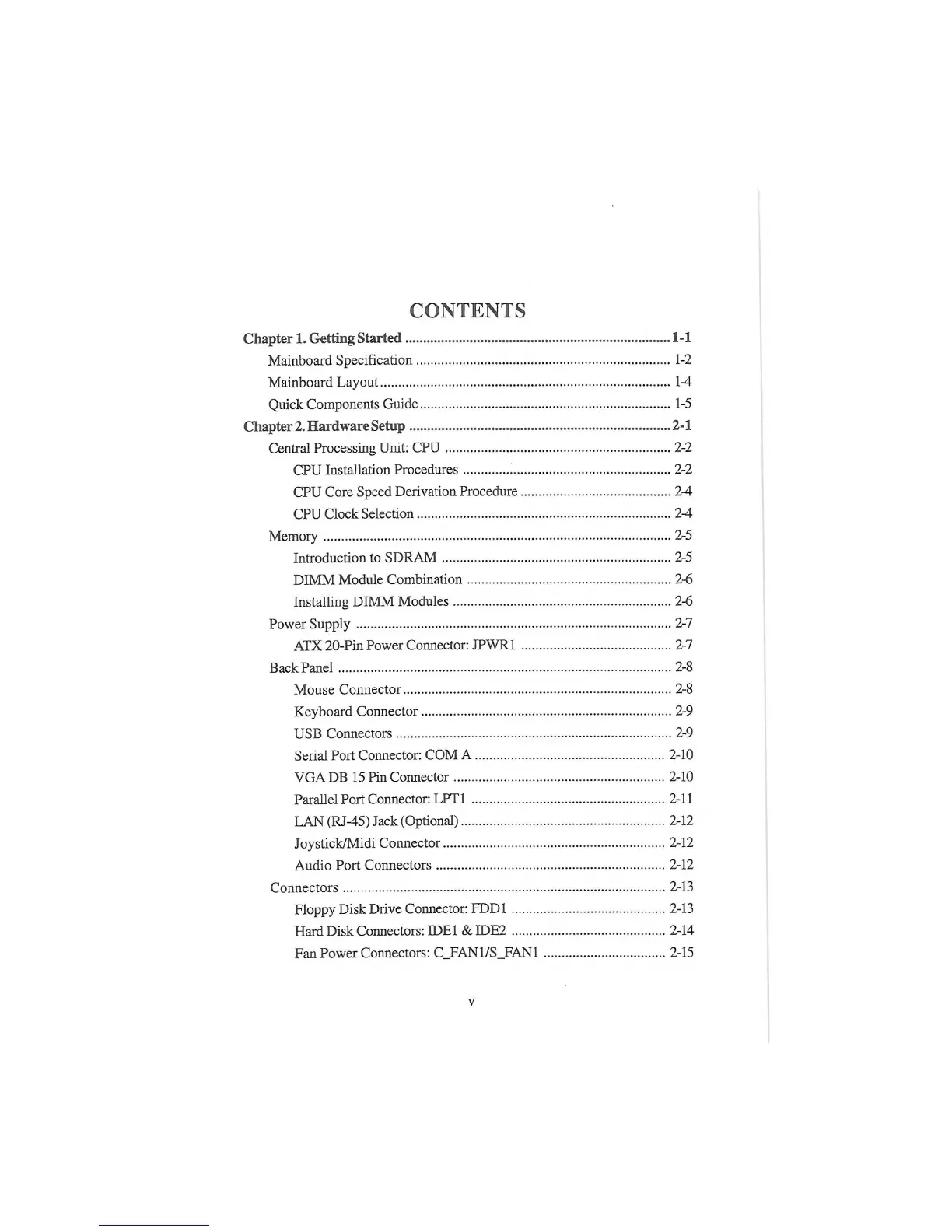

CONTENTS
Chapter 1. Getting Started 1-1
Mainboard Specification 1-2
Mainboard Layout 14
Quick Components Guide 1-5
Chapter
2.
Hardware Setup 2-1
Central Processing Unit: CPU 2-2
CPU Installation Procedures 2-2
CPU Core Speed Derivation Procedure 2-4
CPU Clock Selection 2-4
Memory 2-5
Introduction to SDRAM 2-5
DIMM Module Combination 2-6
Installing DIMM Modules 2-6
Power Supply 2-7
ATX 20-Pin Power Connector: JPWR1 2-7
Back Panel 2-8
Mouse Connector 2-8
Keyboard Connector 2-9
USB Connectors 2-9
Serial Port Connector: COM A 2-10
VGADB 15 Pin Connector 2-10
Parallel Port Connector: LPT1 2-11
LAN (RJ-45) Jack (Optional) 2-12
Joystick/Midi Connector 2-12
Audio Port Connectors 2-12
Connectors 2-13
Floppy Disk Drive Connector: FDD1 2-13
Hard Disk Connectors: ШЕ1 & ШЕ2 2-14
Fan Power Connectors: C_FAN1/S_FAN1 2-15
v
