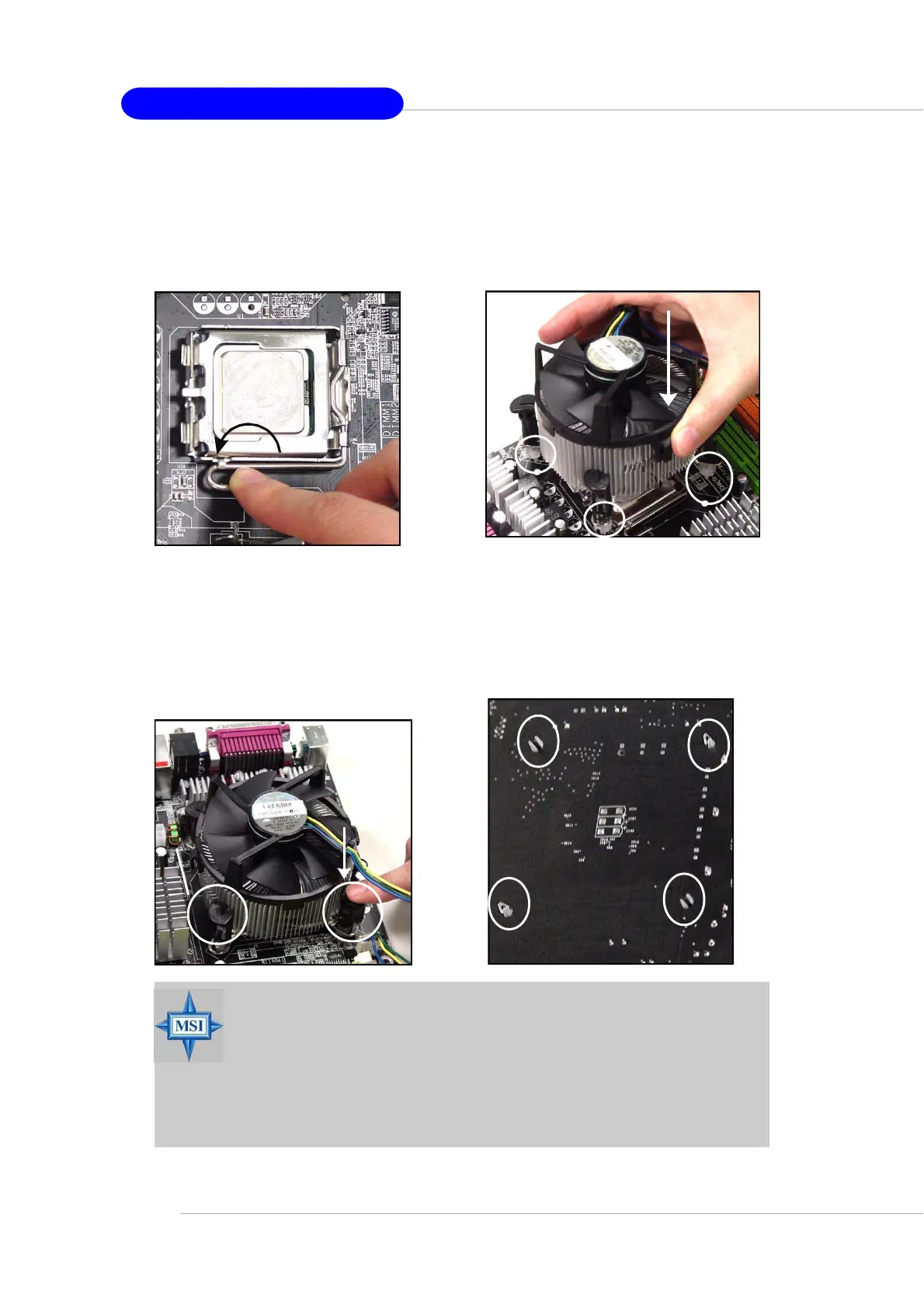

MS-7071 M-ATX Mainboard
10. Align the holes on the mainboard
with the heatsink first. Pull down
the fan/heatsink until its four clips
get wedged in the holes of the
mainboard.
12. Turn over the mainboard to con-
firm that the clip-ends are cor-
rected inserted.
locking
switch
11. Press the four hooks down
to fasten the fan. Then ro-
tate the locking switch (refer
to the correct direction
marked on it) to lock the
hooks again.
9. Engage the load while press-
ing down lightly onto the load
plate, and then secure the le-
ver with the hook under reten-
tion tab.
MSI Reminds You...
1. Confirm if your CPU heatsink/cooler is firmly installed before
turning on your system.
2. Check the information in PC Health Status of H/W Monitor
in BIOS (refer to p.3-20 for details) for the CPU temperature.
3. Make sure that the CPU socket pins are not turned up or
pressed down.
