3-22
MS-7071 M-ATX Mainboard

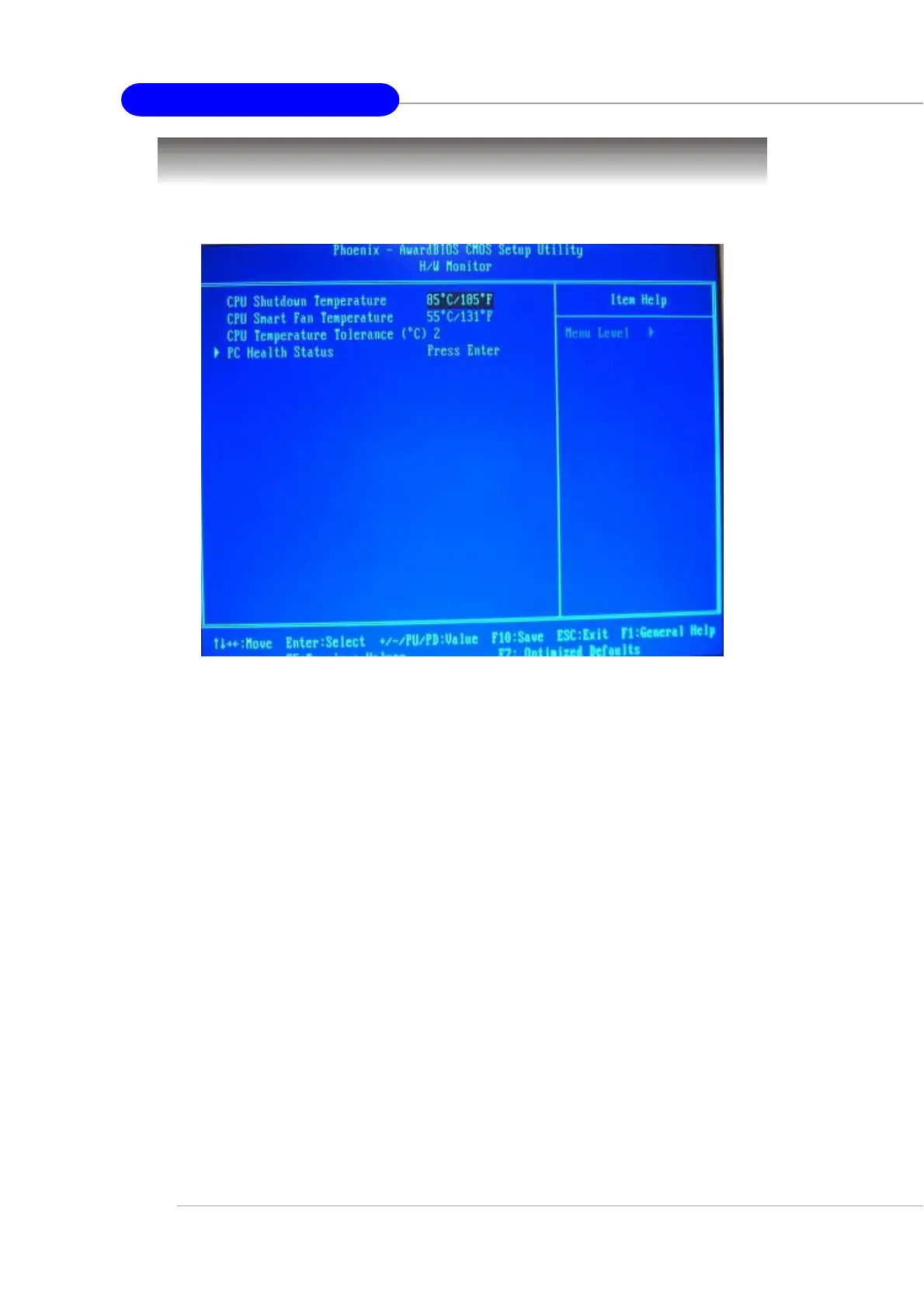

H/W Monitor
This section shows the status of your CPU, fan, overall system status, etc.
Monitor function is available only if there is hardware monitoring mechanism
CPU Shutdown Temperature
If the CPU temperature reaches the limit preset in the next setting, the system
will shutdown automatically. This helps you to prevent the CPU overheating
problem. This item is available only when your OS supports this function, such
as Windows ME/XP. Setting options: [Disabled], [80
O
C/176
O
F]. [85
O
C/185
O
F],
[90
O
C/194
O
F].
CPU Smart Fan Temperature
When the current temperature of the CPU fan reaches the value you specify
here, the CPU fan will speed up for cooling down to avoid the CPU damage; on
the contrary, if the CPU fan current temperature is lower than the specified
value, the CPU fan will slow down its speed to keep the temperature stable.
CPU Temperature Tolerance (
O
C)
This item allows you to set the tolerance value of the CPU.
