2-8
MS-7071 M-ATX Mainboard

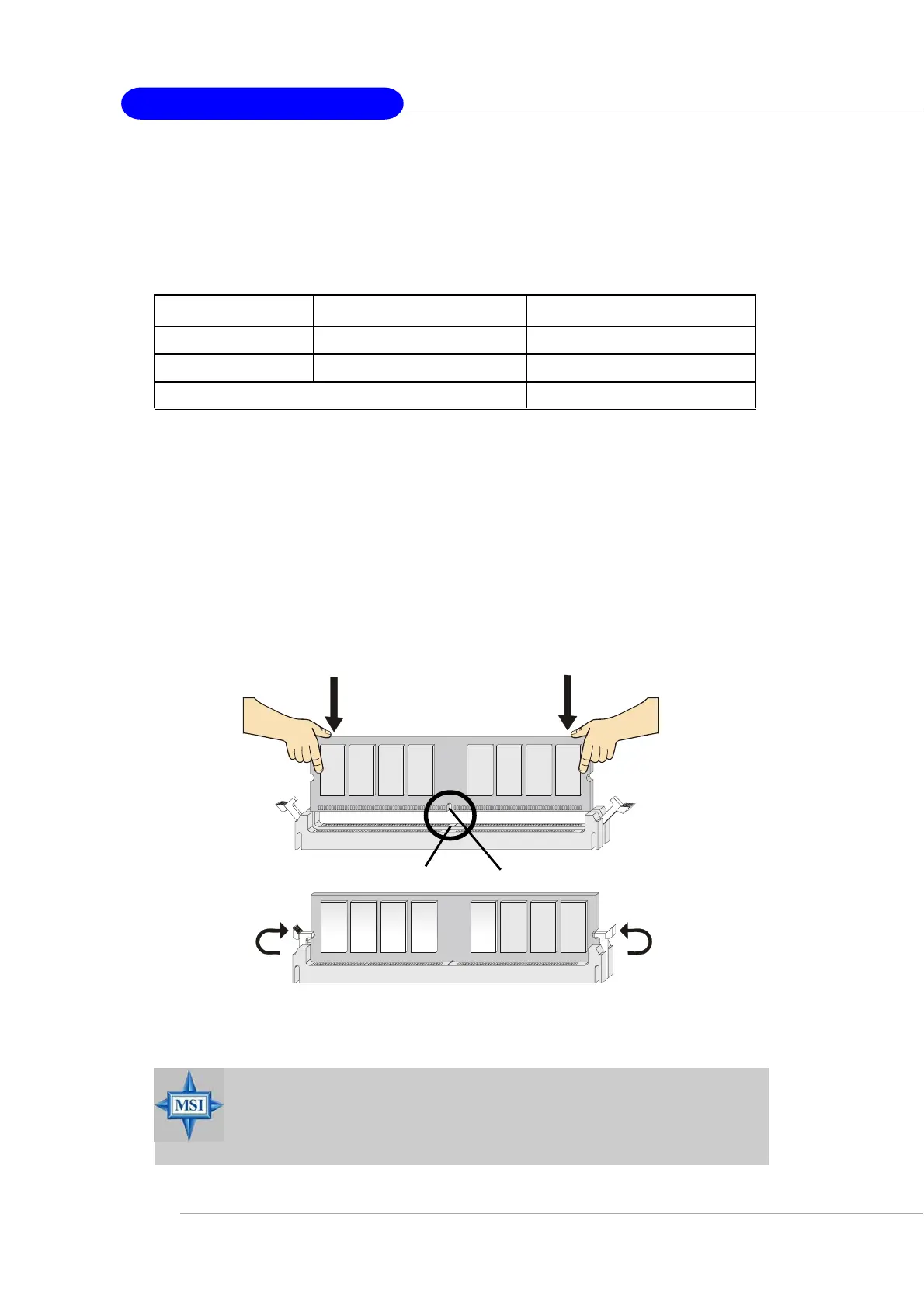

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module
will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push
it in until the golden finger on the memory module is deeply inserted in
the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
DIMM Module Combination
Install at least one DIMM module on the slots. You can install either single- or
double-sided modules in any order to meet your own needs.
Memory modules can be installed in any combination as follows:
Volt
Notch
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
S: Single Side D: Double Side
Slot Memory Module Total Memory
DDR 1 S/D 64MB~1GB
DDR 2 S/D 64MB~1GB
Maximum System Memory Supported 64MB~2GB
