2-14
MS-7071 M-ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case,
LAN, USB Ports, IR module and CPU/System FAN.

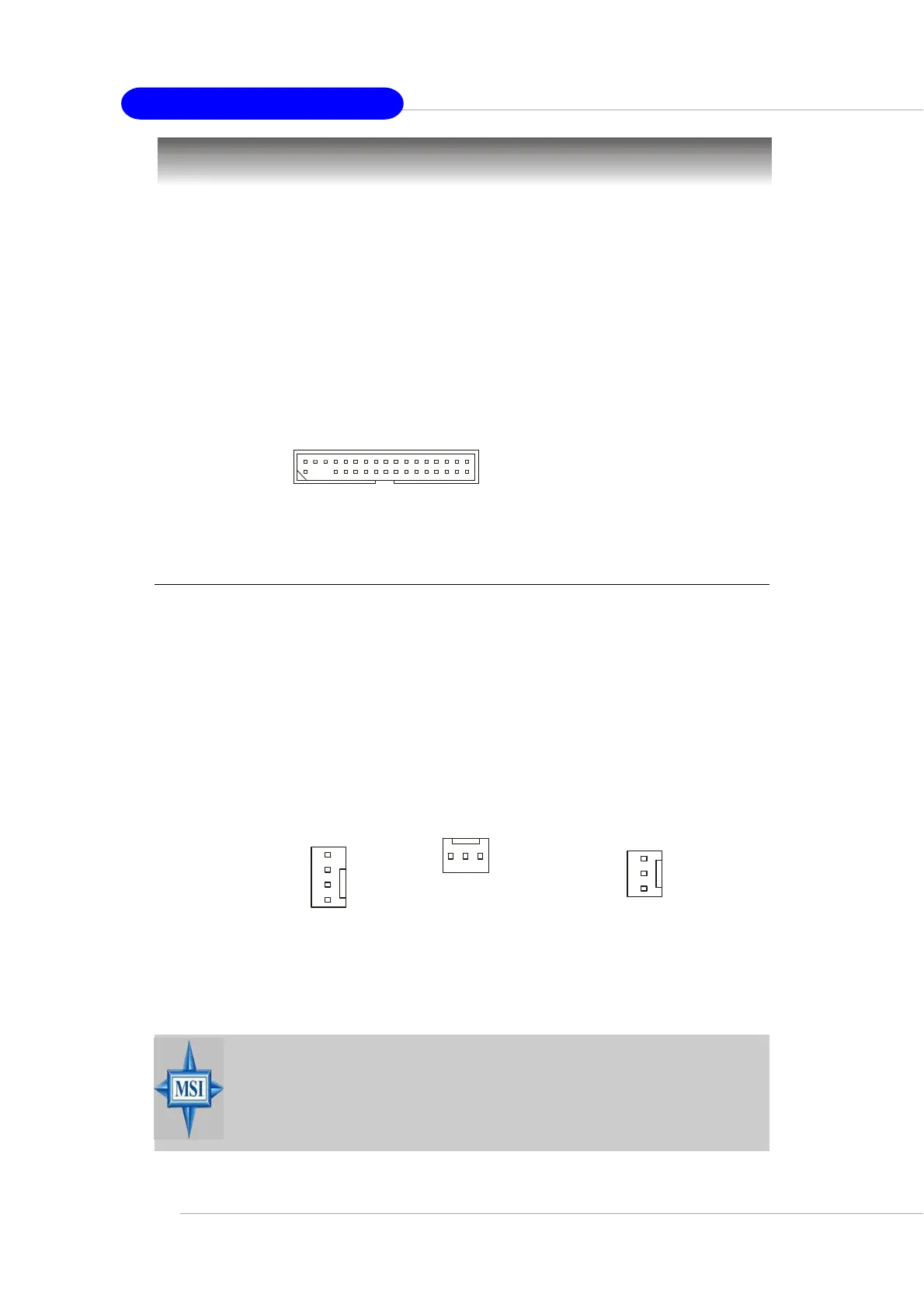

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: CPU_FAN1/SYS_FAN1/PWR_FAN1
The fan connectors support system cooling fan with +12V. It supports
four/three-pin head connector. When connecting the wire to the connectors,
always take note that the red wire is the positive and should be connected to
the +12V, the black wire is Ground and should be connected to GND. If the
mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan
control.
SYS_FAN1CPU_FAN1
+12V
GND
Control
SENSOR
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. Please refer to the recommended CPU fans at Intel
®
official
website.
SENSOR
+12V
GND
SENSOR
+12V
GND
PWR_FAN1
