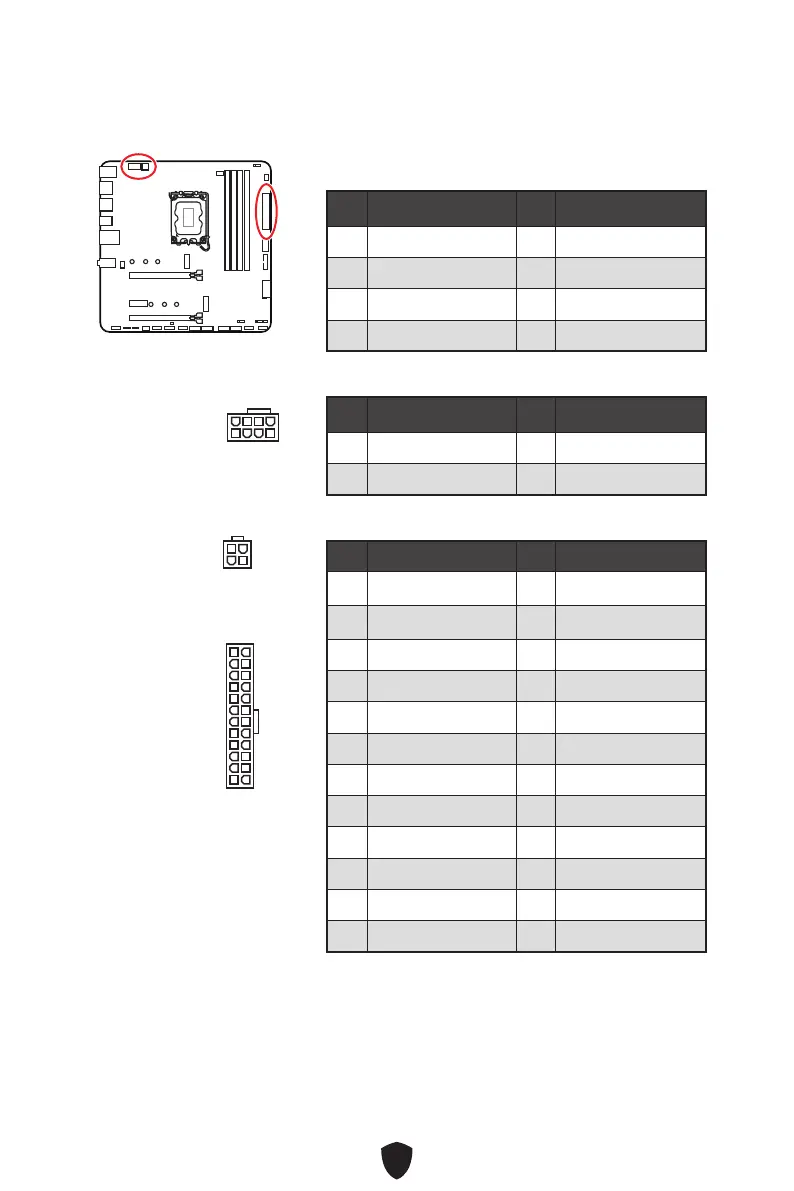

CPU_PWR1

 󱥯󲁢󲁿  󱥯󲁢󲁿

1 Ground 2 Ground

3 Ground 4 Ground

5 +12V 6 +12V

7 +12V 8 +12V

CPU_PWR2

 󱥯󲁢󲁿  󱥯󲁢󲁿

1 Ground 2 Ground

3 +12V 4 +12V

ATX_PWR1

 󱥯󲁢󲁿  󱥯󲁢󲁿

1 +3.3V 2 +3.3V

3 Ground 4 +5V

5 Ground 6 +5V

7 Ground 8 PWR OK

9 5VSB 10 +12V

11 +12V 12 +3.3V

13 +3.3V 14 -12V

15 Ground 16 PS-ON#

17 Ground 18 Ground

19 Ground 20 Res

21 +5V 22 +5V

23 +5V 24 Ground

4 1

CPU_PWR1

CPU_PWR2

131

ATX_PWR1

2 1

Questions and Answers:

Need help?

Do you have a question about the MSI PRO B760M-A DDR4 II and is the answer not in the manual?

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
