MSI PRO B760M-A DDR4 II User Manual

35
󳲞󹲋
󸸳󱝭󳲞󹲋󵭡󴁘󸹒󳲞󱶝󹬻󴍆󵷜󸹒󳲞󲚻󾖜

󹆢󸋘
 󸕂󴳈󳠵󾖞󲅈󳲞󲖶󳲞󷉥󳘗󹱑󴨟󶅛󸹒󳲞󾖞󱟧󱰁󸹈󳨑󹩏󱠁󲀰󳵊󾖜
 󲦚󸋘󱟧󸹒󳲞󲚻󲽍󾖛󲀟󱯳󹩚󾖞󸕂󲹂󸆈󳋌󱱌󸯣󺄷󾖜
󳲞󷉥 󸏁󷵏󲂁󶏺 󳲞󷉥 󸏁󷵏󲂁󶏺

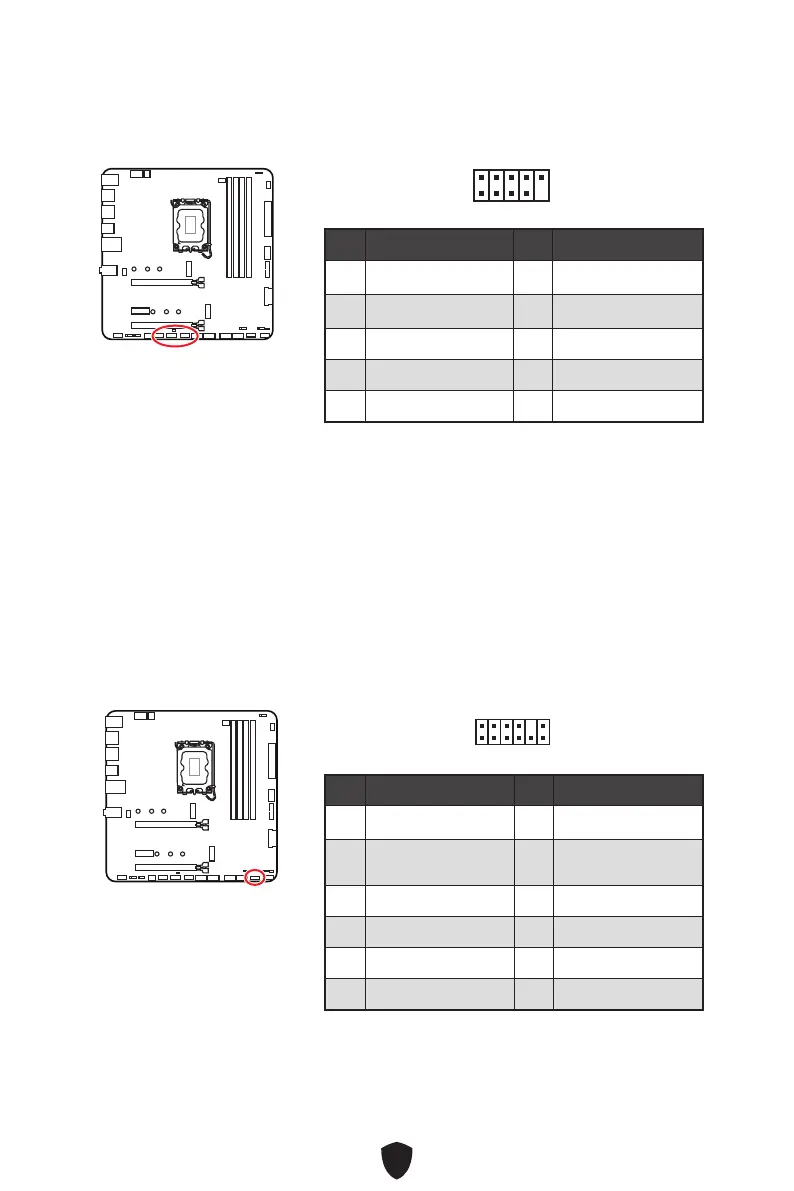

1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9
󴟜󶩭󳲞󹲋
󴨡󳲞󹲋󵭡󴁘󸹒󳲞󲁗󱥰󸣩󳎦󲁙󴟜󶩭󾖜󸕂󲀒󹠻󲹂󾆈󳎦󲁙󳩿󱱥󵾻󸍵󴉣󲣙󸒐󳞹󾖜
󳲞󷉥 󸏁󷵏󲂁󶏺 󳲞󷉥 󸏁󷵏󲂁󶏺
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI
Data)
4
Master Out Slave In (SPI
Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
