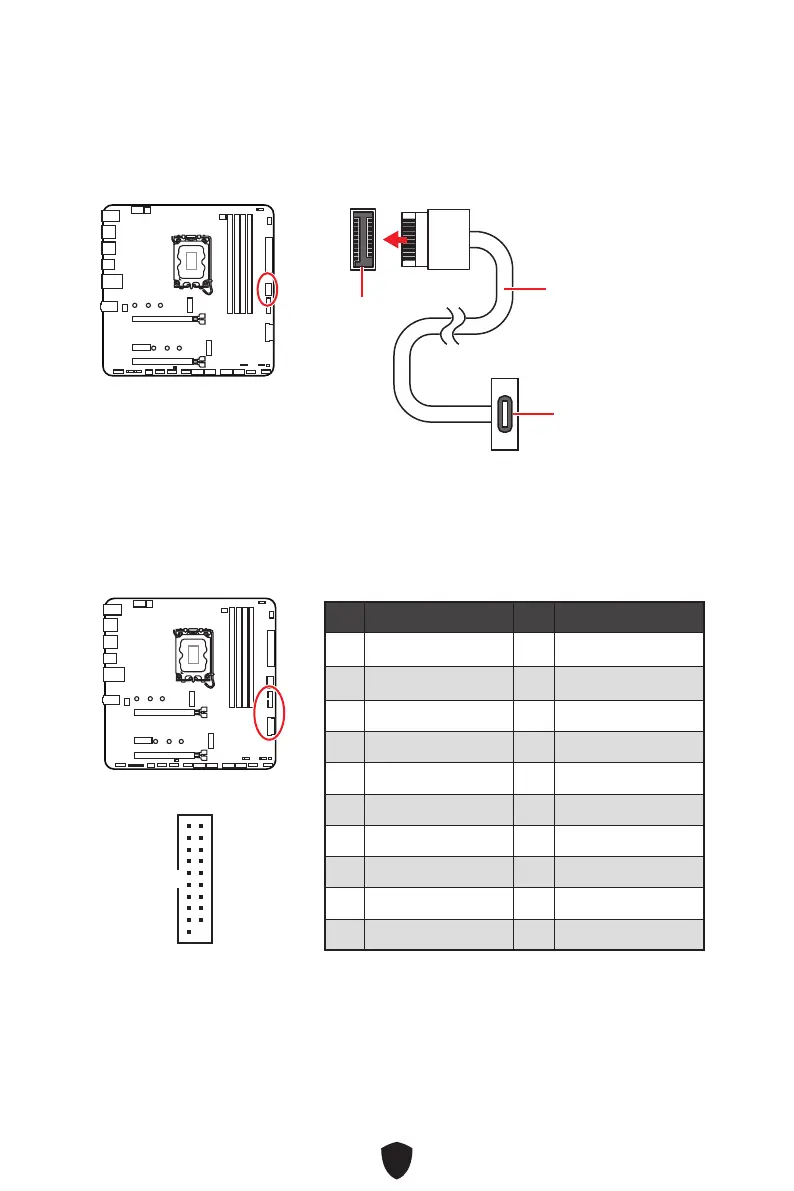

JUSB5

    

 󱥯󲁢󲁿  󱥯󲁢󲁿
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
