MSI PRO B760M-A DDR4 II User Manual

36

󳍘󲢰󸔧󱴷󹳖
󳍆󴄻󱴣󱸦󱥯󲁢
󸔧󳿑󹩙󲖫󱴣󱸦󲢰
󷍬󱹿󷍬󱹿󵷜󴗾
󱴣

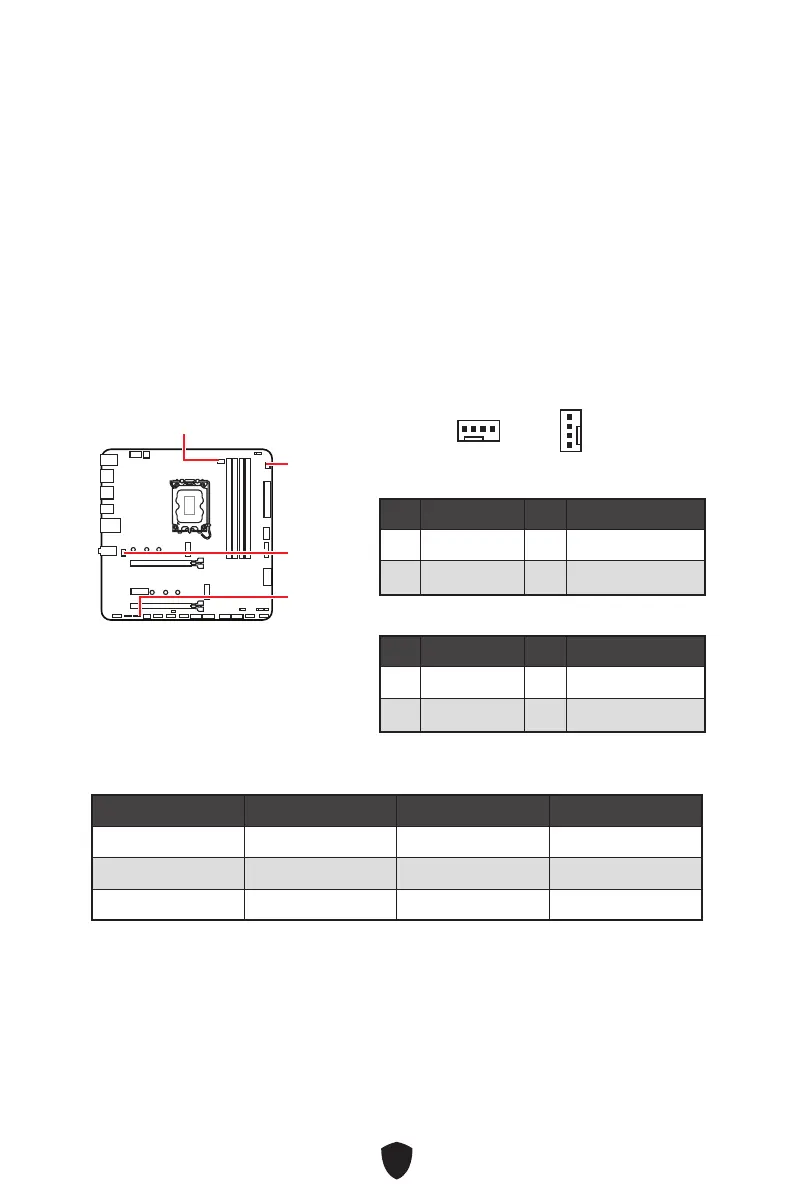

BIOS> HARDWARE MONITOR
󸐇󲹤󸹂󳐁
󴺿󳐁󲢰 󲣍 
󴉵󲣴󸹂󳐁󱹿󱢖

󴳇󳠴
󱴺󴉳󳖷󴨟󱹿󱢖󶅚󸓄
CPU_FAN1
SYS_FAN1
SYS_FAN2
PUMP_FAN1
1
1
󲹤󶺳
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
󲹤󶺳
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 Ground 2 Voltage Control
3 Sense 4 NC
    󱟐 󴝏
   󴉵󲣴󹩙󴵋 󴉵󲣴󹩙󴽥
CPU_FAN1 󷍬 󱹿 2A 24W
PUMP_FAN1  3A 36W
SYS_FAN1~2  1A 12W

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
