MSI PRO B760M-A DDR4 II User Manual

27
M2_1~2: M.2 Slots (Key M)
M2_1
M2_2

Important
 Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
 If your M.2 SSD equips its own heatsink,
please remove the M.2 rubber cube in the
M.2 slot before installing M.2 SSD. Do not
re-install the heatsink supplied with your
motherboard.

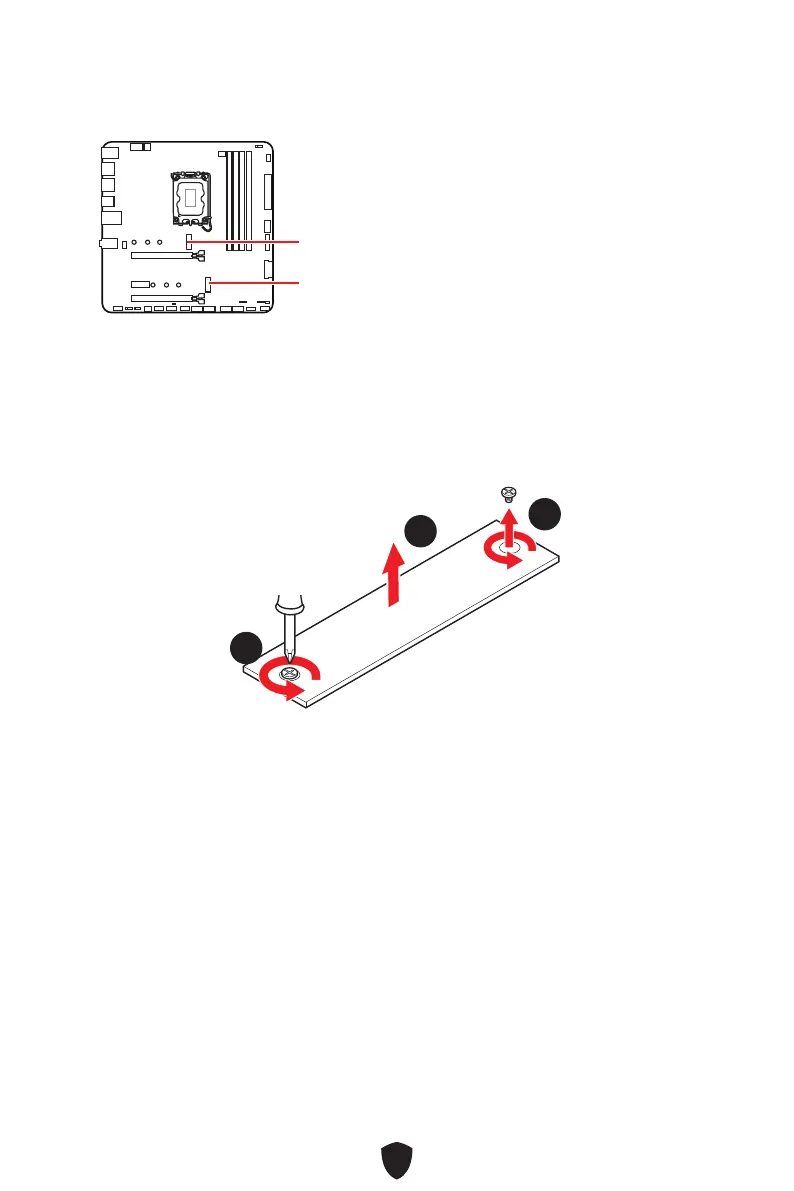

Installing M.2 module into M2_1 slot
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
22
11

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
