MSI PRO B760M-A DDR4 II User Manual

30

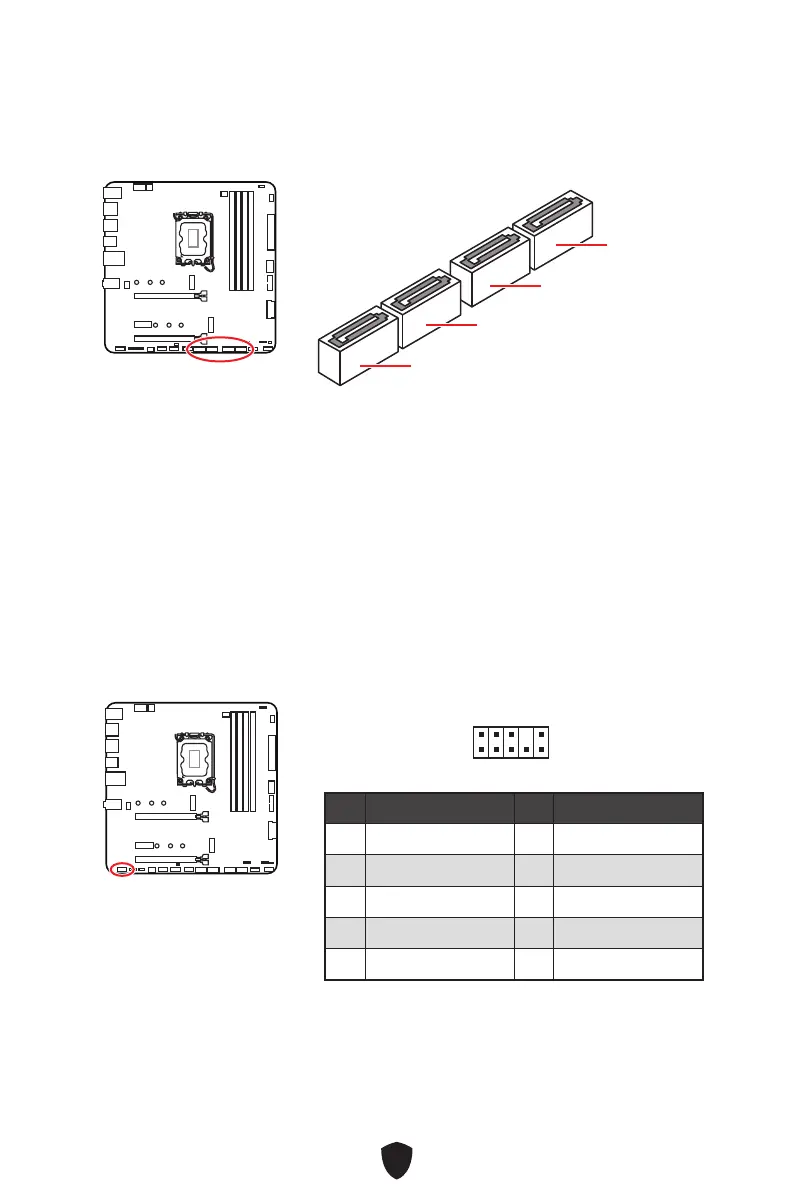

SATA_5~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.

Important
 Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA_5
SATA_7
SATA_6
SATA_8
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
Pin Signal Name Pin Signal Name
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI PRO B760M-A DDR4 II Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
CPU Socket	LGA 1700
Video Outputs	1 x HDMI 2.1, 1 x DisplayPort 1.4
Storage Interface	4x SATA 6Gb/s, 2x M.2
Network	Realtek RTL8125BG 2.5Gbps LAN
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Memory Speed	Up to 5333 MHz (OC)
USB Ports	6x USB 3.2, 6x USB 2.0
