MSI RX480 Neo2 MS-7151 User Manual

2-2
MS-7151 ATX Mainboard

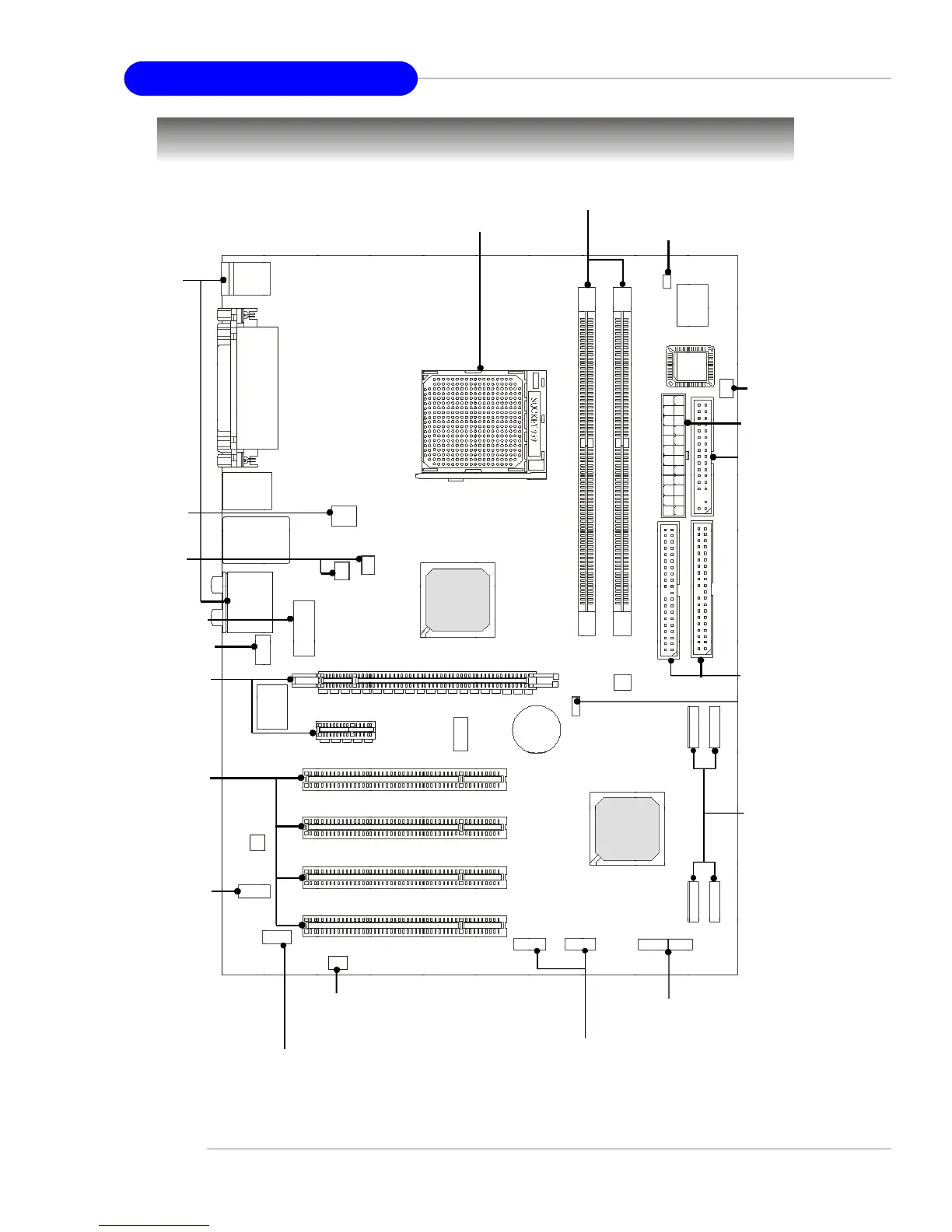

Quick Components Guide
JUSB1, JUSB2, p.2-19
JFP1, JFP2,
p.2-18
SYS_FAN,
p.2-14
JCOM1, p.2-18
PCI Slots,
p.2-22
JAUD1,
p.2-17
PCI Express
Slot, p.2-21
JCD1, p.2-17
Back Panel
I/O, p.2-10
JPWR2,
p.2-9
NB_FAN,
CPU_FAN,
p.2-14
DDR DIMMs, p.2-7
CPU, p.2-3
JCI1, p.2-16
JIR1,
p.2-19
FDD1, p.2-14
JPWR1,
p.2-9
IDE1/2,
p.2-15
SATA1~4,
p.2-16
JCMOS1,
p.2-20
JPWR3, p.2-9

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
