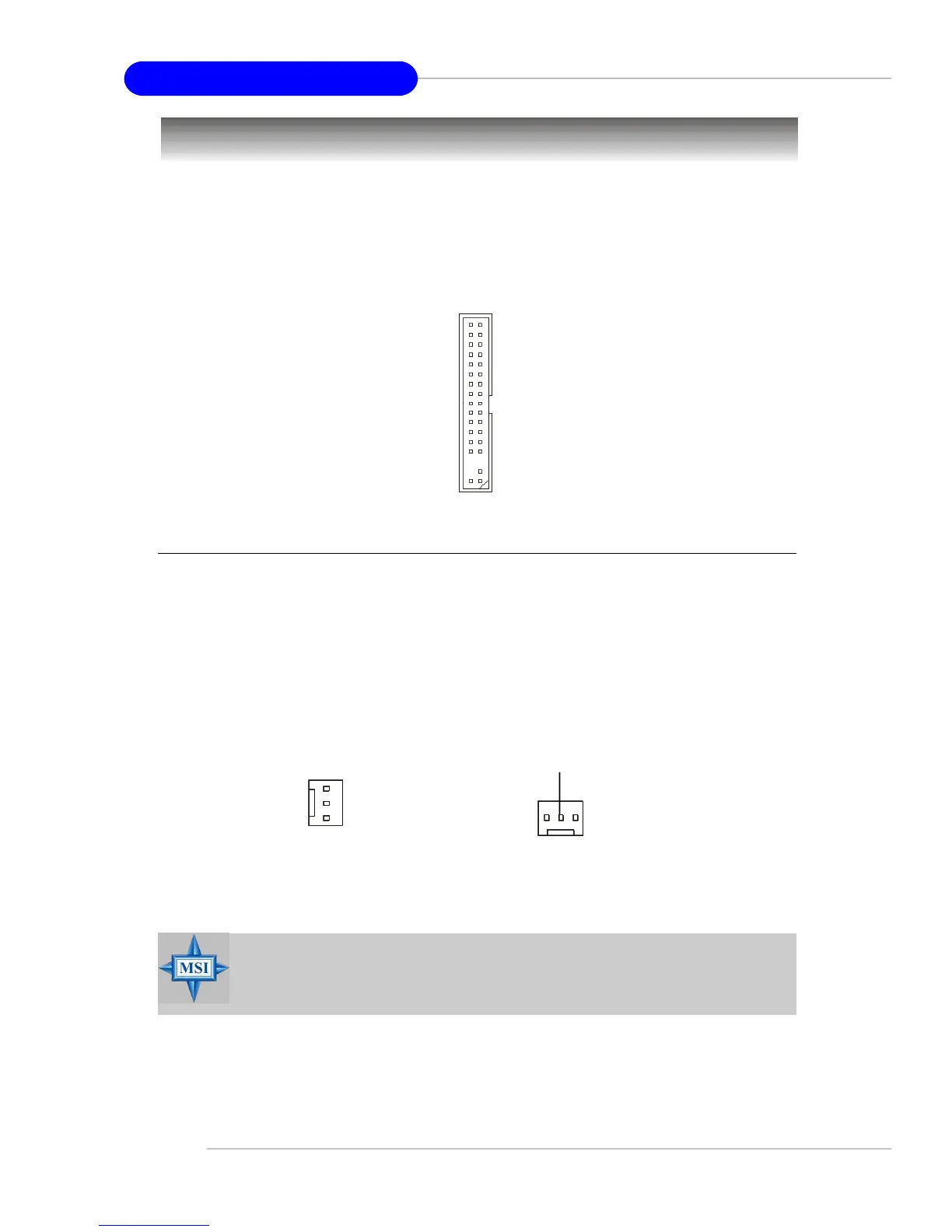

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
Fan Power Connectors: CPU_FAN /NB_FAN/SYS_FAN
The fan power connectors support system cooling fan with +12V. When
connecting the wire to the connectors, always take note that the red wire is the
positive and should be connected to the +12V, the black wire is Ground and should
be connected to GND. If the mainboard has a System Hardware Monitor chipset on-
board, you must use a specially designed fan with speed sensor to take advantage
of the CPU fan control.
MSI Reminds You...
Please refer to the recommended CPU fans at AMD
®
official website
or consult the vendors for proper CPU cooling fan.
FDD1
CPU_FAN/NB_FAN
SENSOR
+12V
GND
SENSOR
+12V
GND
SYS_FAN

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
