MSI RX480 Neo2 MS-7151 User Manual

2-16
MS-7151 ATX Mainboard
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND

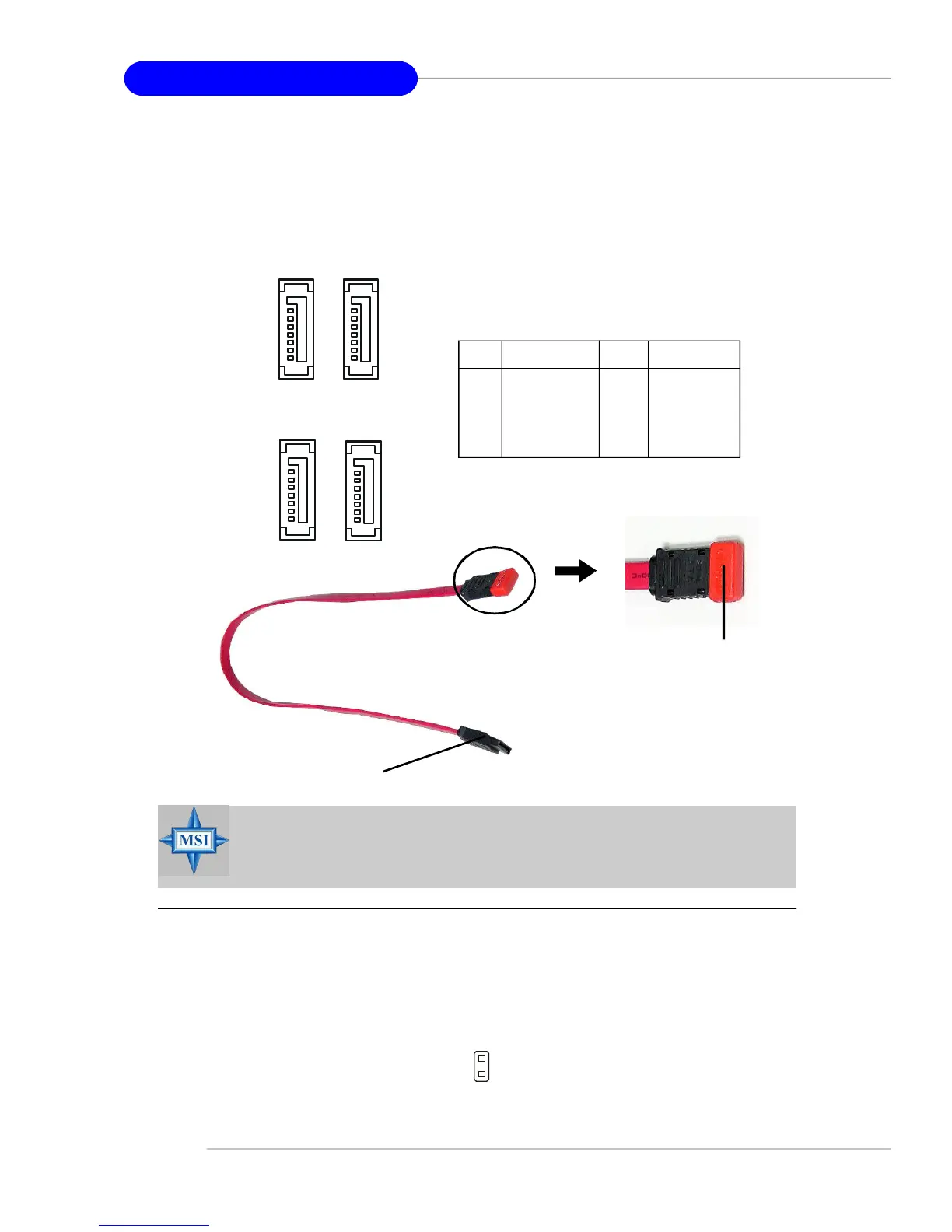

SATA1~ SATA4 Pin Definition
Connect to SATA1/2/3/4
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable
Serial ATA Connectors: SATA1~SATA4
The ATI SB400 SouthBridge supports four serial ATA connectors SATA1~SATA4.
SATA1~SATA4 are high-speed Serial ATA interface ports. Each supports 1
st
genera-
tion serial ATA data rates of 150MB/s and is fully compliant with Serial ATA 1.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.
7
1
SATA1SATA2
SATA3
SATA4
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
Chassis Intrusion Switch Connector: JCI1
This connector is connected to a 2-pin chassis switch. If the chassis is opened,
the switch will be short. The system will record this status and show a warning
message on the screen. To clear the warning, you must enter the BIOS utility and
clear the record.
JCI1
2
1
GND
CINTRU

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
