MSI RX480 Neo2 MS-7151 User Manual

B-3
ATI SATA RAID Setup Guide

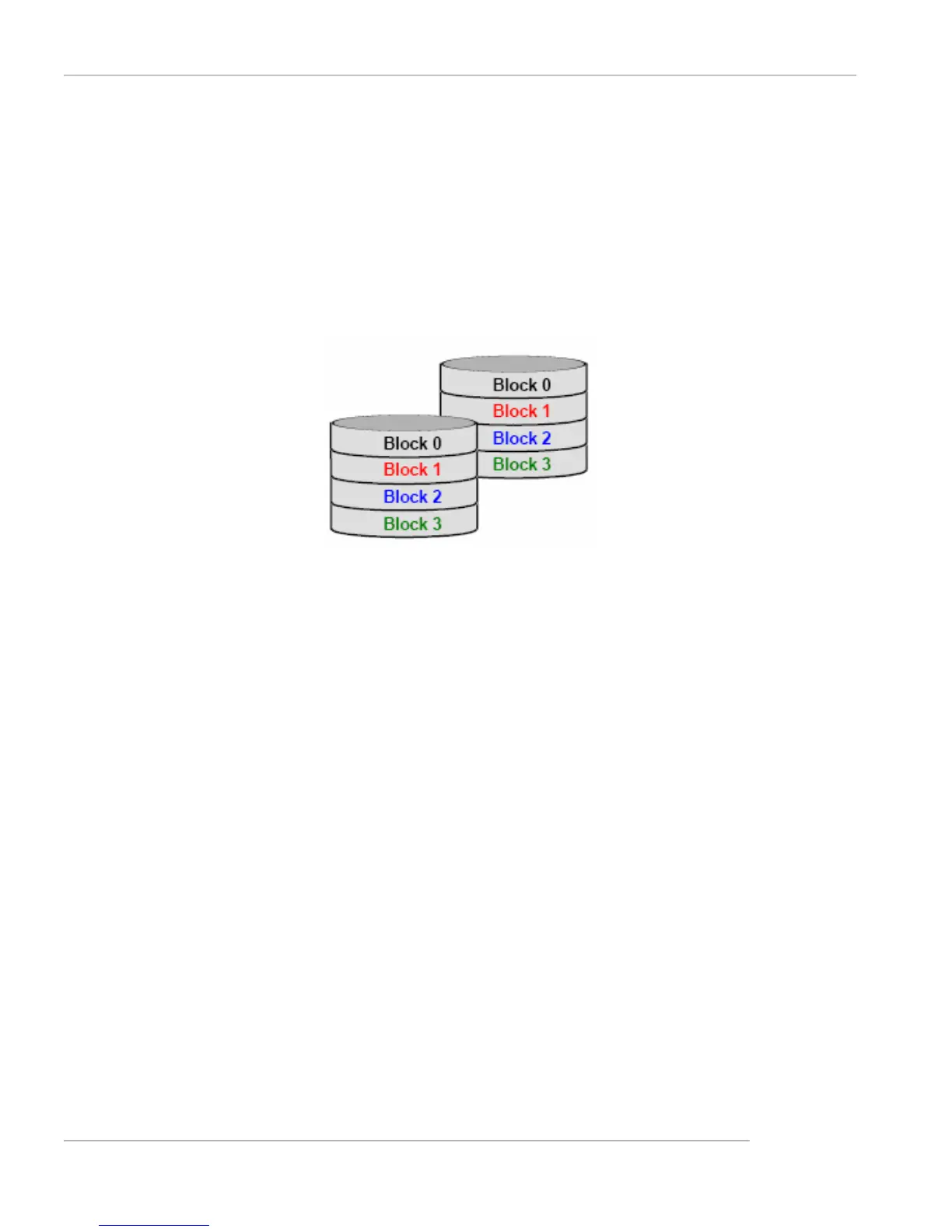

Disk Mirroring (RAID 1)
Disk mirroring creates an identical twin for a selected disk by having the data simul-
taneously written to two disks. This redundancy provides protection from a single
disk failure. If a read failure occurs on one drive, the system reads the data from the
other drive.

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
