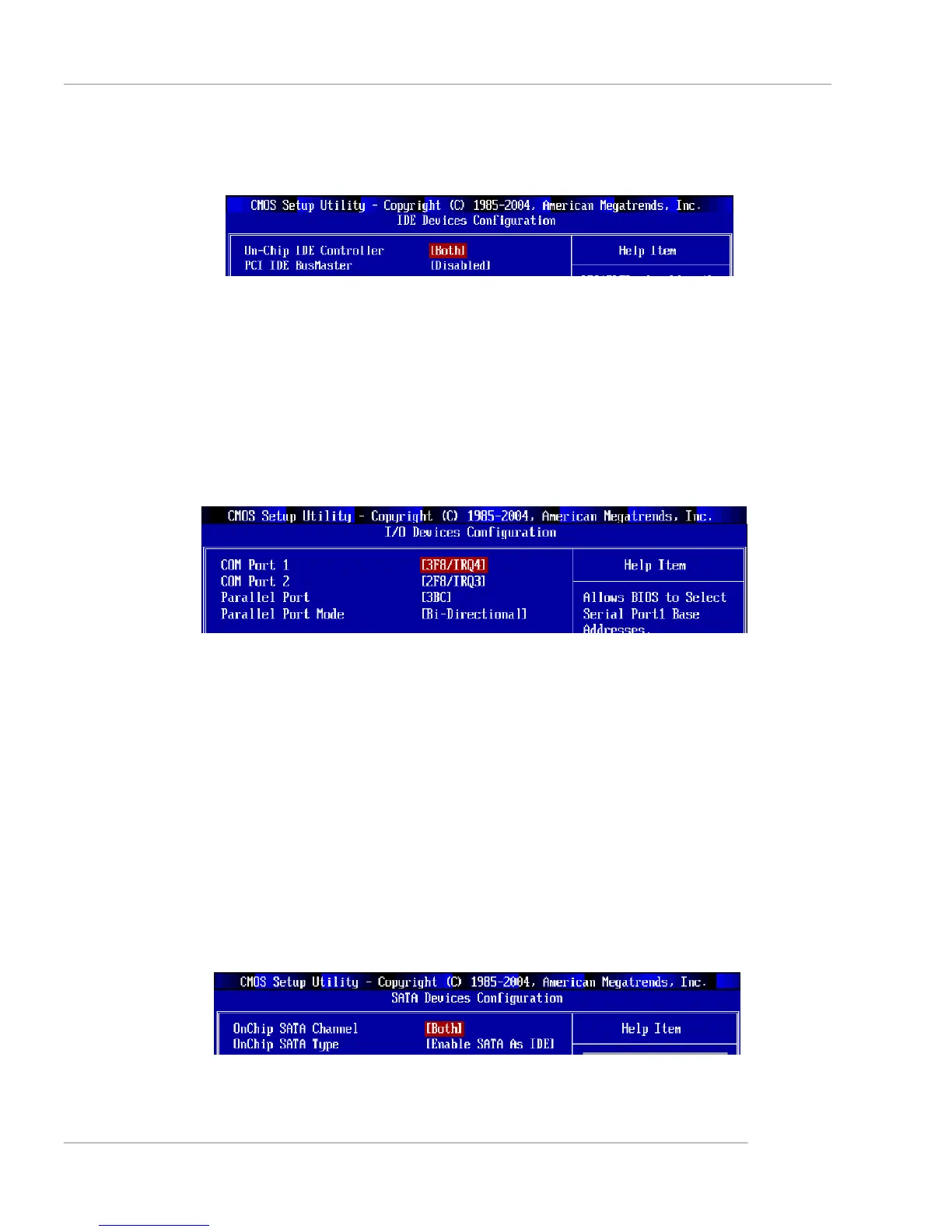

3-13
BIOS Setup
OnChip SATA Channel
Setting options: [Disabled], [Single], [Both].
IDE Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
On-Chip IDE Controller
The integrated peripheral controller contains a IDE interface with support
for two IDE channels. Select [Enabled] to activate the IDE interface. Set-
tings options: [Disabled], [Primary], [Secondary], [Both].
PCI IDE BusMaster
Set this option to [Enabled] to specify that the IDE controller on the PCI local
bus has bus mastering capability. Settings options: [Disabled], [Enabled].
I/O Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
COM Port 1/2
These items specify the base I/O port addresses of the onboard Serial Port
1/2. Selecting [Auto] allows BIOS to automatically determine the correct
base I/O port address. Settings: [3F8/IRQ4], [2F8/IRQ3], [3E8/IRQ4], [2E8/
IRQ3] and [Disabled].
Parallel Port
This field specifies the base I/O port address of the onboard parallel port.
Selecting [Auto] allows BIOS to automatically determine the correct base I/
O port address. Settings: [378], [278], [3BC] and [Disabled].
Parallel Port Mode
This item selects the operation mode for the onboard parallel port: [ECP],
[Normal] or [Bi-Directional].
SATA Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
