Engine Controls
See the Engine Operator’s Manual for the location and function
of the controls on the engine.
Beam Locks
These two locks are used to secure the beam in the horizontal
or the vertical position. The vertical beam lock is located on the
tanks bracket. The horizontal beam lock is located on the beam
support latch bracket.
Control Handle
The control handle has three positions; Forward, Neutral and
Reverse. See the Operation Section for instructions.
Log Dislodger
The log dislodger is designed to remove any partially split wood
from the wedge. This may occur while splitting large diameter
wood or freshly cut wood.
Control Handle
The Control Handle is used to move the wedge up and down to
split wood.
Wedge
The wedge is used to split the wood.
Tongue
The tongue is used to attach to a towing vehicle for
transportation.

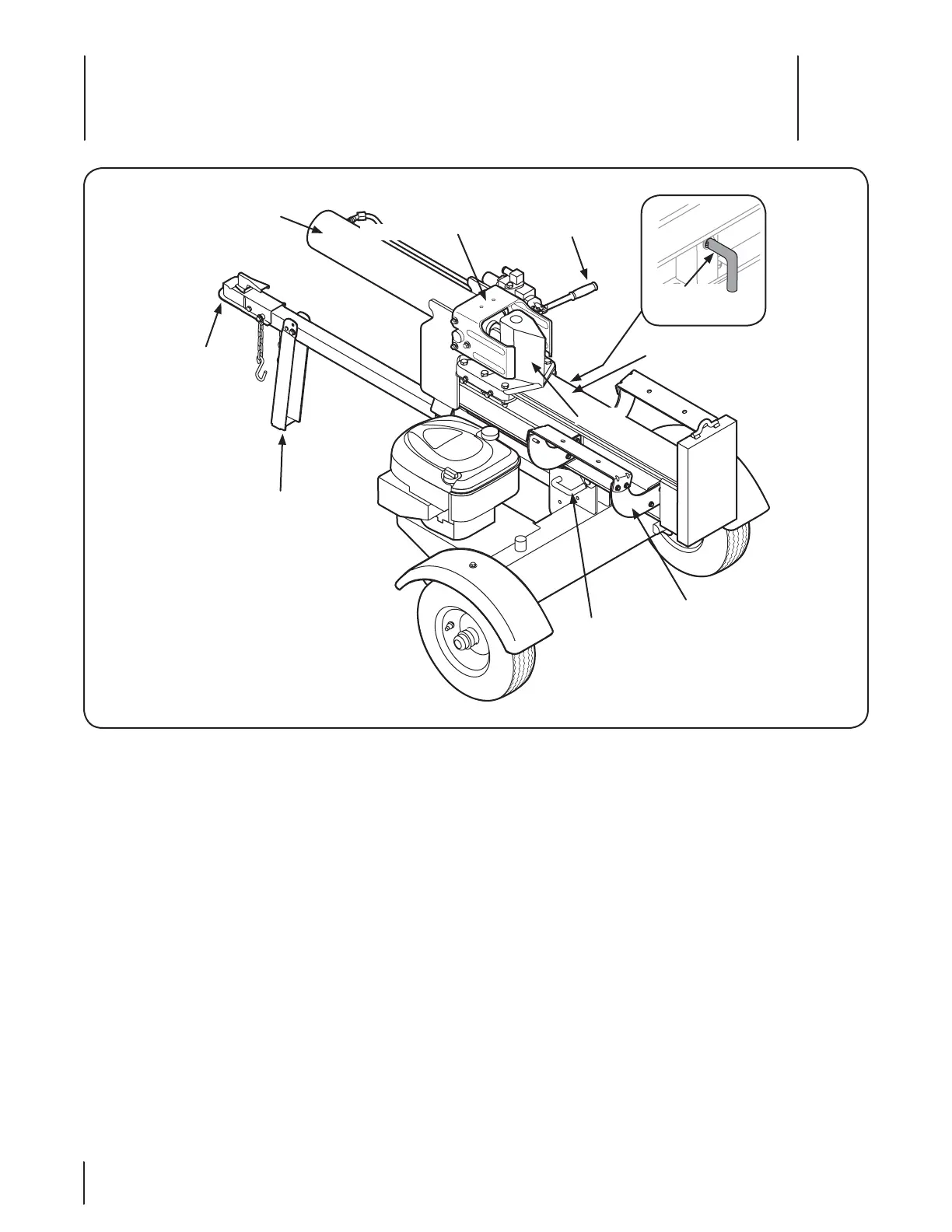

Controls and Features
4
10
