Contents of Carton
One Log Splitter• One Operator’s Manual• One Engine Operator’s Manual•
One Tongue Assembly•
Use extreme caution when unpacking
this machine. Some components are very heavy and
will require additional people or mechanical
handling equipment.
NOTE: All references in this manual to the left or right side of the
log splitter are from the operating position only. Exceptions, if
any, will be specified.
Assembly

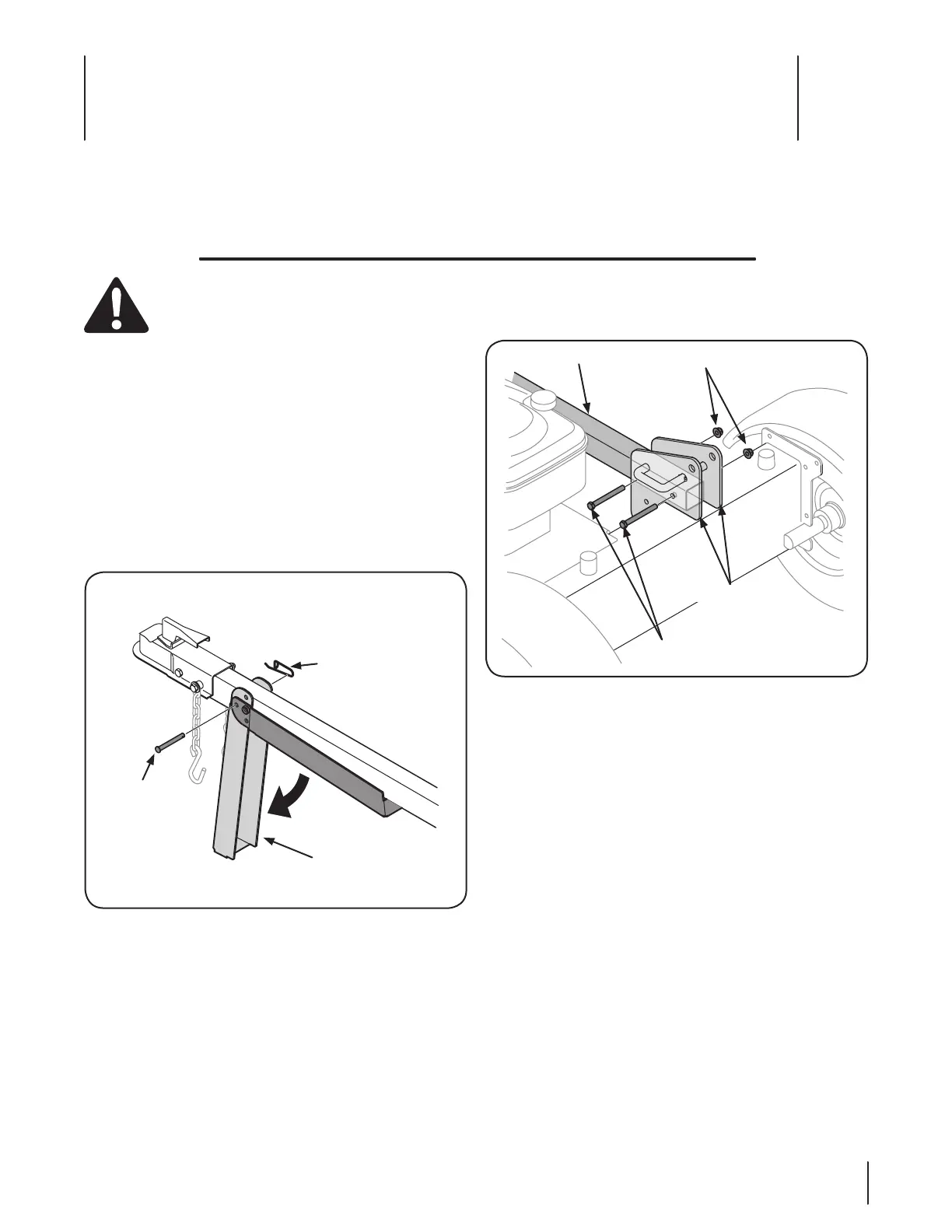

Attaching the Jack Stand
The jack stand is shipped in the transport position.
Remove the spring clip and clevis pin and then pivot the 1.
jack stand towards the ground into the operating position.
Secure the jack stand in position with the clevis pin and 2.
spring clip. See Fig. 3-1.
Attaching the Tongue
With the log splitter still standing upright, remove the two 1.
hex bolts and hex nuts from the tank bracket. See Fig. 3-2.
Align the holes in the tongue with the holes in the tank 2.
bracket and secure with the hardware just removed. See
Fig. 3-2.
NOTE: The high pressure hose, which runs from the gear
pump the bottom of the control valve, must be above the
tongue assembly. See Section 9 (Illustrated Parts List) if you
are unsure of which hose is the high pressure hose.
Assembly & Set-Up
3
7
