MTD 550 - Illustrated Parts List

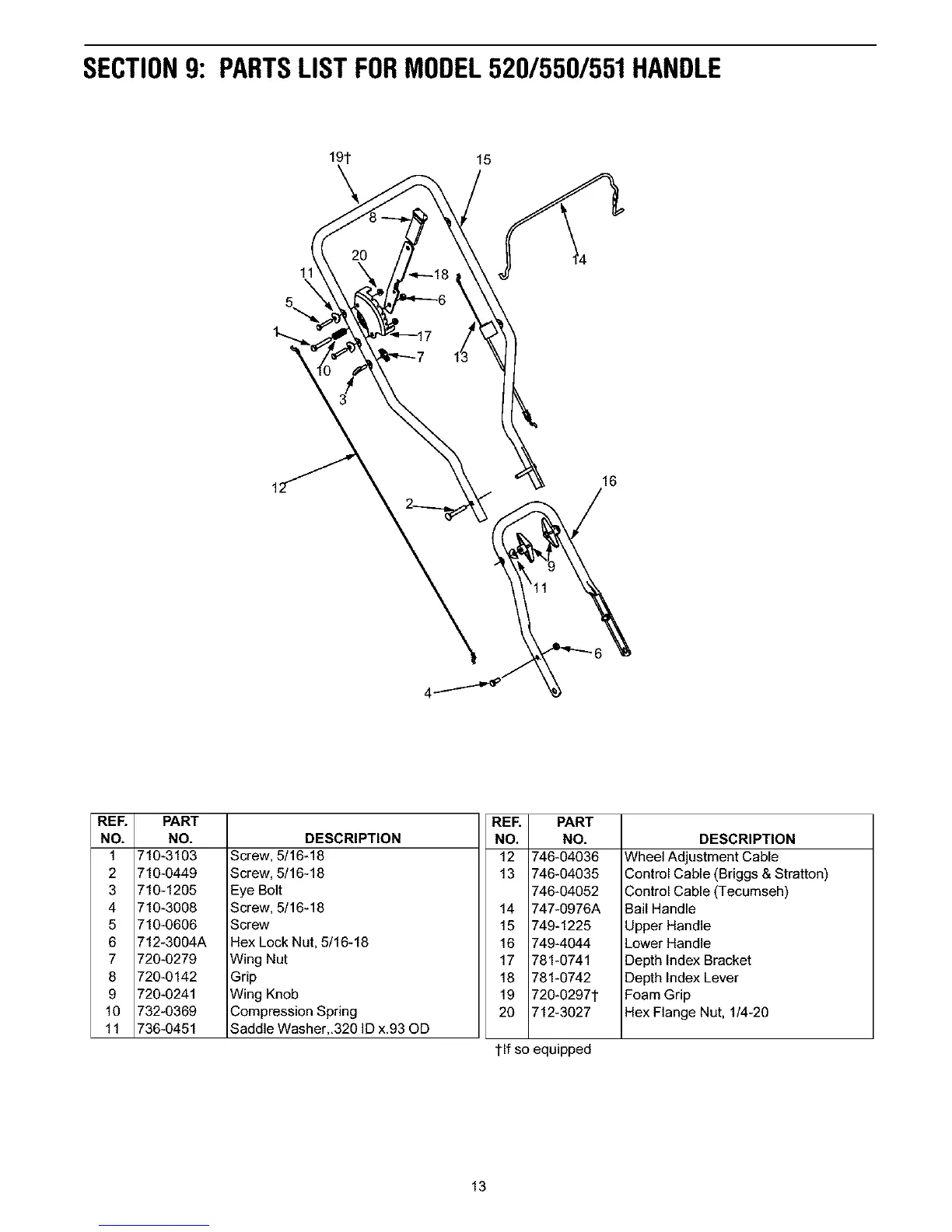

SECTION9: PARTSLISTFORMODEL520/550/551HANDLE
19t 15
\
20
16
REE PART
NO. NO.
1 710-3103
2 710-0449
3 710-1205
4 710-3008
5 710-0606
6 712-3004A
7 720-0279
8 720-0142
9 720-0241
10 732-0369
11 736-0451
DESCRIPTION
Screw, 5/16-18
Screw, 5/16-18
Eye Bolt
Screw, 5/16-18
Screw
Hex Lock Nut, 5/16-18
Wing Nut
Grip
Wing Knob
Compression Spring
Saddle Washer,,320 ID x,93 OD
REE PART
NO. NO.
12 746-04036
13 746-04035
746-04052
14 747-0976A
15 749-1225
16 749-4044
17 781-0741
18 781-0742
19 720-0297t
20 712-3027
tlf so equipped
DESCRIPTION
Wheel Adjustment Cable
Control Cable (Briggs & Stratton)
Control Cable (Tecumseh)
Bail Handle
Upper Handle
Lower Handle
Depth Index Bracket
Depth Index Lever
Foam Grip
Hex Flange Nut, 1/4-20
13
