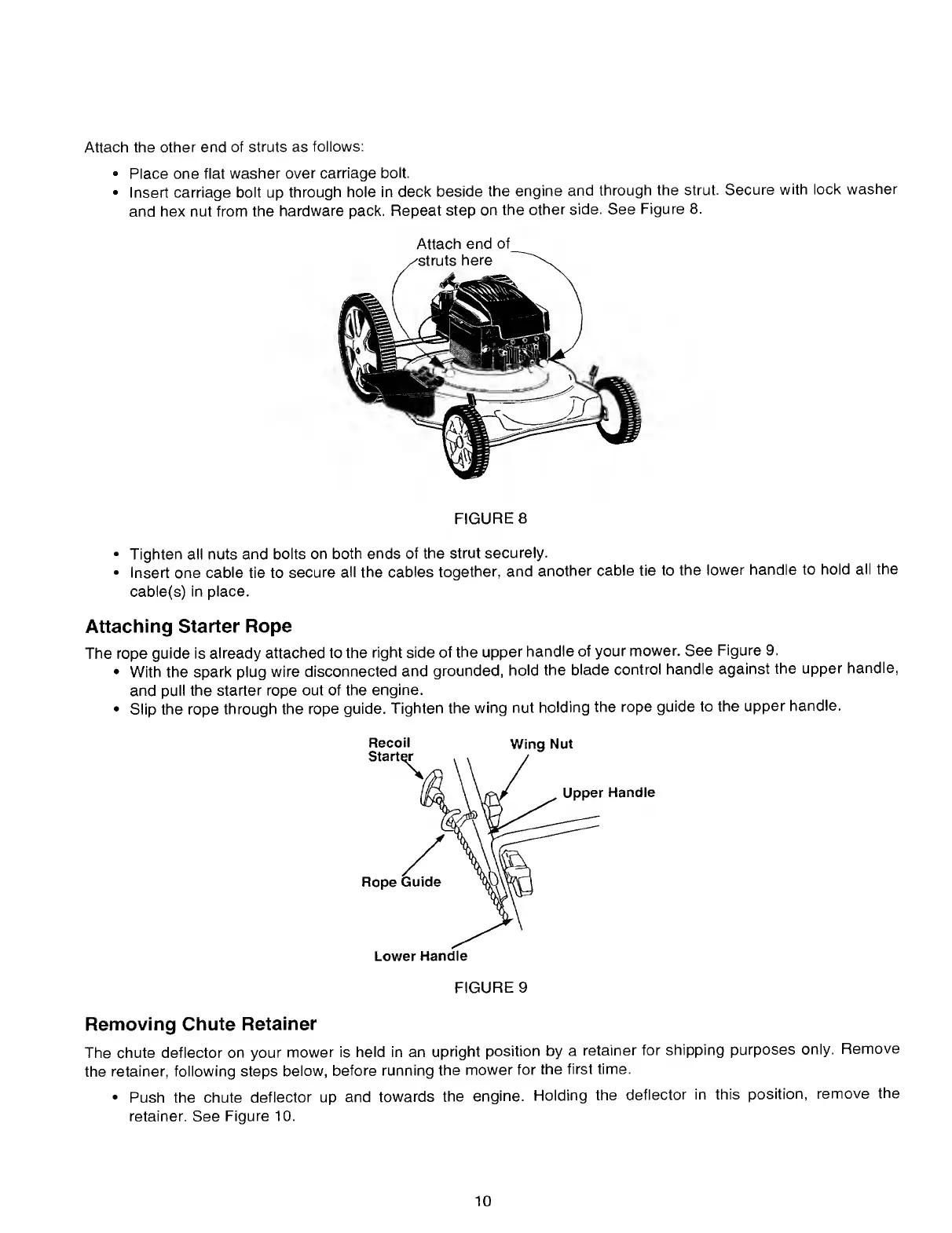

Attach the other end of struts as follows:
• Place one flat washer over carriage bolt.
• Insert carriage bolt up through hole in deck beside the engine and through the strut. Secure with lock washer
and hex nut from the hardware pack. Repeat step on the other side. See Figure 8.
Attach end of
FIGURE 8
• Tighten all nuts and bolts on both ends of the strut securely.
• Insert one cable tie to secure all the cables together, and another cable tie to the lower handle to hold all the
cable(s) in place.
Attaching Starter Rope
The rope guide is already attached to the right side of the upper handle of your mower. See Figure 9.
• With the spark plug wire disconnected and grounded, hold the blade control handle against the upper handle,
and pull the starter rope out of the engine.
• Slip the rope through the rope guide. Tighten the wing nut holding the rope guide to the upper handle.
FIGURE 9
Removing Chute Retainer
The chute deflector on your mower is held in an upright position by a retainer for shipping purposes only. Remove
the retainer, following steps below, before running the mower for the first time.
• Push the chute deflector up and towards the engine. Holding the deflector in this position, remove the
retainer. See Figure 10.
10
