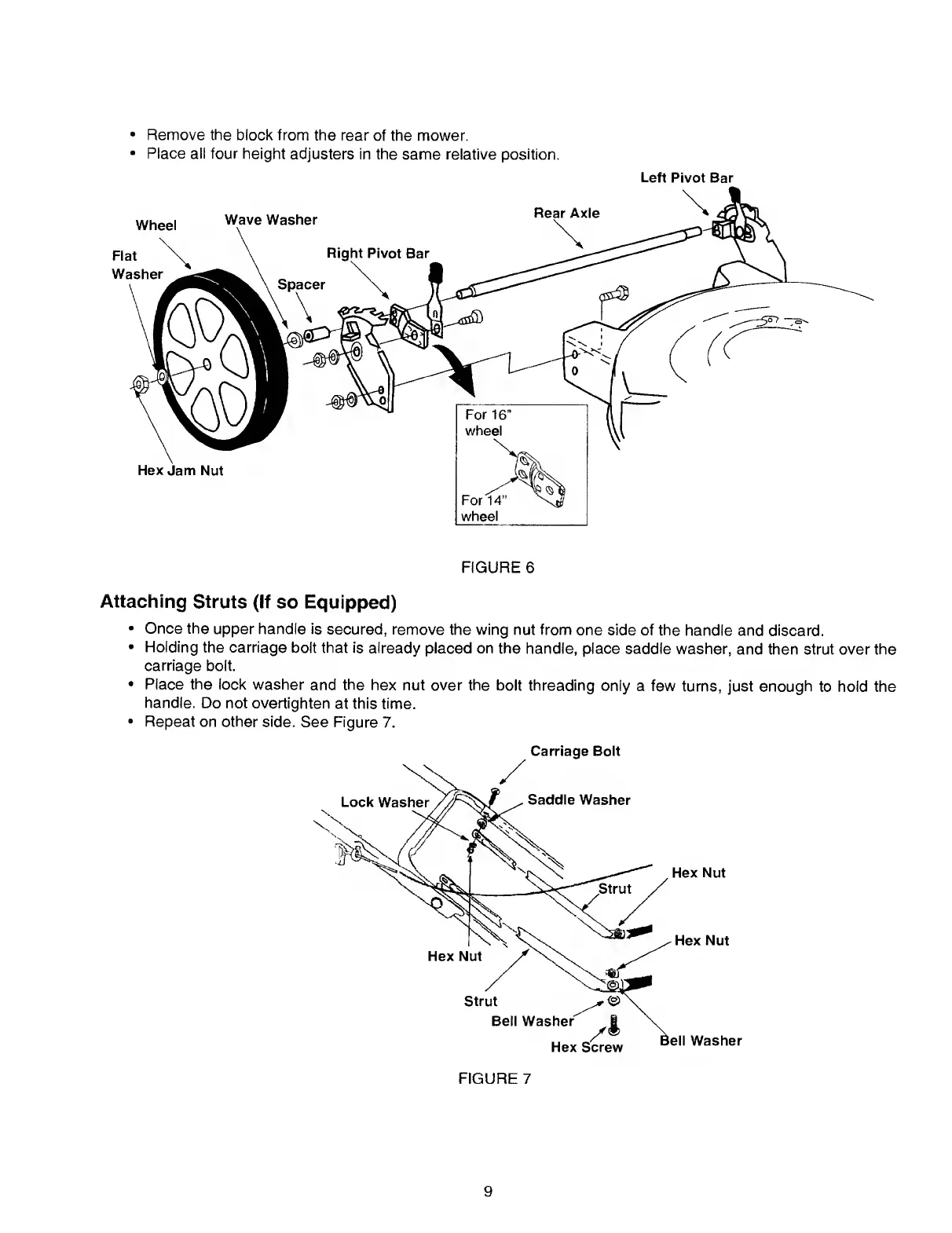

• Remove the block from the rear of the mower.
• Place all four height adjusters in the same relative position.
Left Pivot Bar
Attaching Struts (If so Equipped)
• Once the upper handle is secured, remove the wing nut from one side of the handle and discard.
• Holding the carriage bolt that is already placed on the handle, place saddle washer, and then strut over the
carriage bolt.
• Place the lock washer and the hex nut over the bolt threading only a few turns, just enough to hold the
handle. Do not overtighten at this time.
• Repeat on other side. See Figure 7.
Carriage Bolt
9
