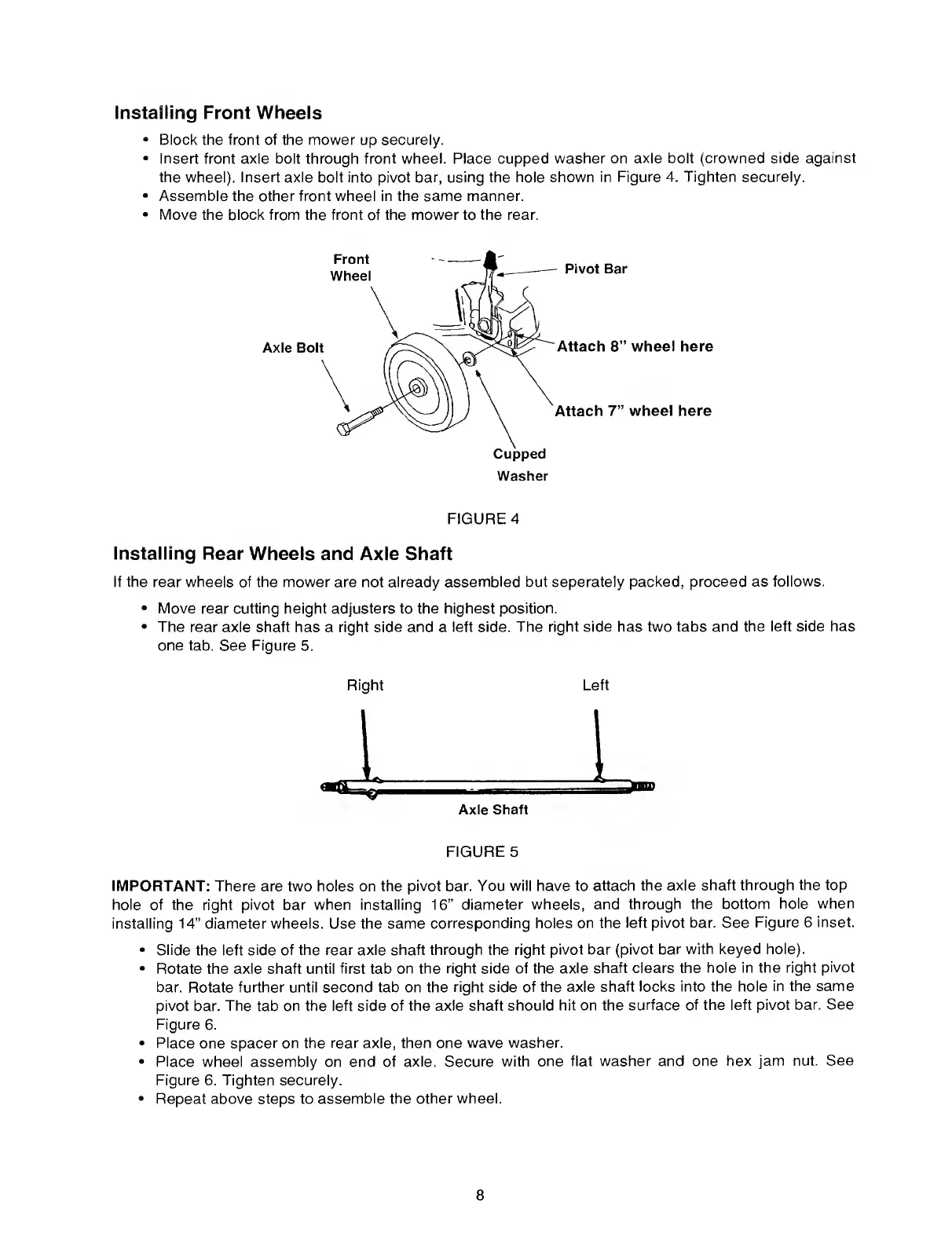

Installing Front Wheels
• Block the front of the mower up securely.
• Insert front axle bolt through front wheel. Place cupped washer on axle bolt (crowned side against
the wheel). Insert axle bolt into pivot bar, using the hole shown in Figure 4. Tighten securely.
• Assemble the other front wheel in the same manner.
• Move the block from the front of the mower to the rear.
FIGURE 4
Installing Rear Wheels and Axle Shaft
If the rear wheels of the mower are not already assembled but seperately packed, proceed as follows.
• Move rear cutting height adjusters to the highest position.
• The rear axle shaft has a right side and a left side. The right side has two tabs and the left side has
one tab. See Figure 5.
Right Left
Axle Shaft
FIGURE 5
IMPORTANT: There are two holes on the pivot bar. You will have to attach the axle shaft through the top
hole of the right pivot bar when installing 16” diameter wheels, and through the bottom hole when
installing 14” diameter wheels. Use the same corresponding holes on the left pivot bar. See Figure 6 inset.
• Slide the left side of the rear axle shaft through the right pivot bar (pivot bar with keyed hole).
• Rotate the axle shaft until first tab on the right side of the axle shaft clears the hole in the right pivot
bar. Rotate further until second tab on the right side of the axle shaft locks into the hole in the same
pivot bar. The tab on the left side of the axle shaft should hit on the surface of the left pivot bar. See
Figure 6.
• Place one spacer on the rear axle, then one wave washer.
• Place wheel assembly on end of axle. Secure with one flat washer and one hex jam nut. See
Figure 6. Tighten securely.
• Repeat above steps to assemble the other wheel.
8
